Same model may have multiple batches, images only for reference.

0878311411

Name: 0878311411
Brand: Molex, LLC
SKU: 855539
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	0878311411
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors

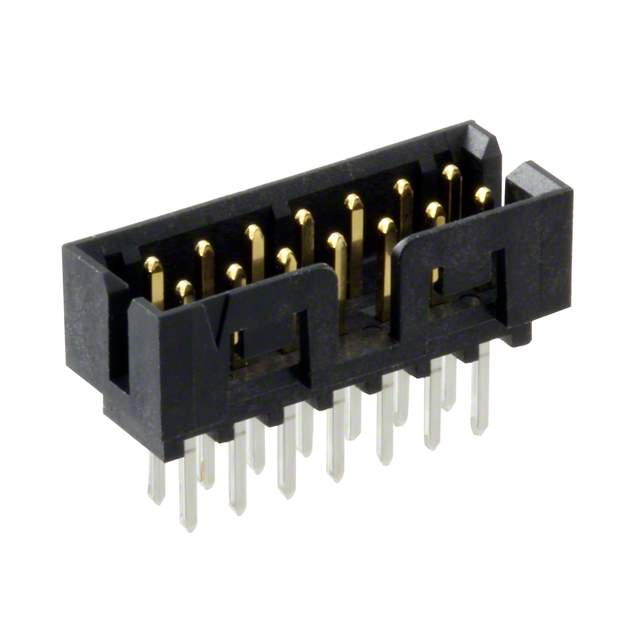

Description	CONN HEADER VERT 14POS 2MM / Connector Header Through Hole 14 position 0.079" (2.00mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Molex, LLC
Series	Milli-Grid 87831
Package	Tube
Product Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	14
Number of Rows	2
Row Spacing - Mating	0.079" (2.00mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Latch Holder
Contact Length - Mating	0.141" (3.60mm)
Contact Length - Post	0.138" (3.50mm)
Insulation Height	0.252" (6.40mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Polyamide (PA), Nylon, Glass Filled
Features	Keying Slot
Temperature Range - Operating	-55°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	2A
Voltage Rating	125V
Contact Finish Thickness - Post	74.8µin (1.90µm)
Applications	Automotive, General Purpose, Telecommunications
Base Product Number	087831
Standard Package	32 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	855539-0878311411
Ultra Librarian 3D Model	Ultra Librarian 0878311411 CAD Model

Description

The Milli-Grid 87831 is a header connector with male pins, designed for board-to-board or cable connections.

Positions: 14
Pitch: 0.079" (2.00mm)
Features: Keying slot and latch holder
Contact Finish: Gold with a thickness of 30.0µin (0.76µm)
Applications: Automotive, general-purpose, and telecommunications
Package: Tube
Standard Package: 32 pcs
Insulation Material: Polyamide, nylon, and glass-filled
