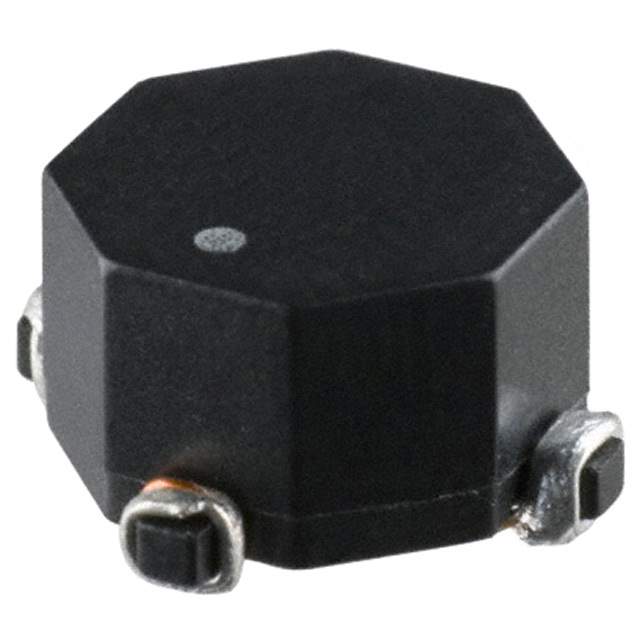

CMS2-5-R Real Image
Same model may have multiple batches, images only for reference.

CMS2-5-R

Part No CMS2-5-R
Manufacturer Eaton Bussmann
Catalog Common Mode Chokes
Description CMC 160UH 2.3A 2LN SMD / 160 µH @ 100 kHz 2 Line Common Mode Choke Surface Mount 2.3A DCR 29mOhm (Typ)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr Eaton - Electronics Division
Series CMS
Package Tape & Reel
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 160 µH @ 100 kHz
Current Rating (Max) 2.3A
DC Resistance (DCR) (Max) 29mOhm (Typ)
Temperature Range - Operating -40°C ~ 160°C
Mounting SMD (SMT)
Dimension 0.350" L x 0.350" W (8.90mm x 8.90mm)
Height (Max) 0.236" (6.00mm)
Package / Case Horizontal, 4 PC Pad
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8548.00.0000
Other Names 283-4436-1,CMS2-5-R-ND,CMS2-5,283-4436-6,283-4436-2,CMS2-5-ND
Standard Package 800
Win Source Part Number 1225527-CMS2-5-R
Ultra Librarian 3D Model Ultra Librarian CMS2-5-R CAD Model

Description

The Eaton - Electronics Division CMS2-5-R is a common mode choke used in electronic devices.

  • Manufacturer: Eaton - Electronics Division
  • Product Series: CMS
  • Voltage Rating: AC and DC
  • Current Rating: 2.3A
  • Standard Package: 800
  • Mounting Type: SMD (SMT)
  • Filter Type: Power Line
  • Height: 0.236 inches
  • Number of Lines: 2
  • Inductance @ Frequency: 160 µH @ 100 kHz
  • DC Resistance (DCR): 29mOhm (Typ)
  • Package/Case: Horizontal, 4 PC pad
  • Operating Temperature: -40°C to 160°C
