Same model may have multiple batches, images only for reference.

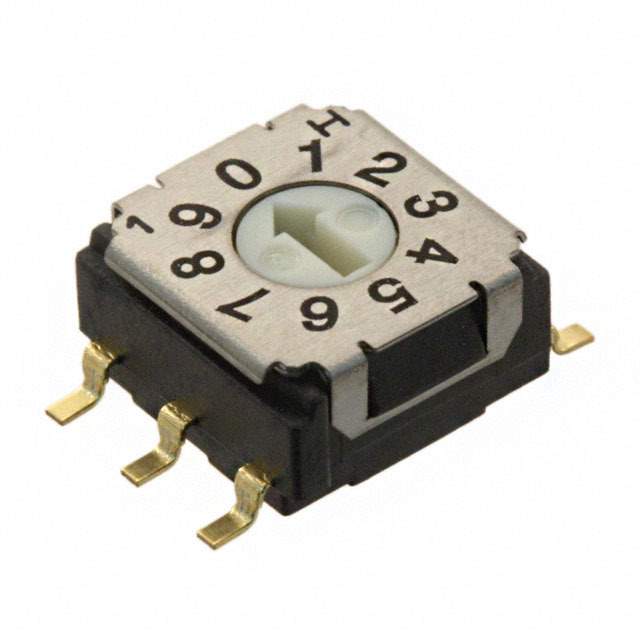

SH-7010TB Real Image
Same model may have multiple batches, images only for reference.

SH-7010TB

Part No SH-7010TB
Manufacturer Copal Electronics Inc.
Catalog DIP Switches
Description SWITCH ROTARY DIP BCD 100MA 5V
Datasheet
SH-7010TB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer Copal Electronics Inc.
Packaging Reel - TR
Status Active
Circuit BCD
Number of Positions 10
Current Rating 100mA
Voltage Rating 5VDC
Actuator Type Rotary for Tool
Actuator Level Flush, Recessed
Contact Finish Gold
Height Above Board 0.148" (3.75mm)
Mounting SMD (SMT)
Termination Style Gull Wing
Pitch 0.100" (2.54mm), Full
Washable Yes
Body Material Polyphenylene Sulfide (PPS)
Length 0.287" (7.30mm)
Temperature Range - Operating -40°C to 85°C
Electrical Life 10,000 Steps
Win Source Part Number 1095636-SH-7010TB
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SH-7010TB CAD Model

Description

The Copal Electronics Inc. switch has 10 positions and a pitch of 0.100" (2.54mm), full.

  • Manufacturer: Copal Electronics Inc.
  • Positions: 10
  • Pitch: 0.100" (2.54mm), full
  • Termination Style: Gull Wing
  • Contact Finish: Gold
  • Voltage Rating: 5VDC
  • Current Rating: 100mA
  • Mounting: SMD (SMT)
  • Packaging: Reel - TR
  • Height Above Board: 0.148" (3.75mm)
  • Length: 0.287" (7.30mm)
  • Body Material: Polyphenylene Sulfide (PPS)
  • Circuit: BCD
  • Actuator Type: Rotary for Tool
  • Actuator Level: Flush, Recessed
  • Washable: Yes
  • Popularity: Medium
  • Supply and Demand: Balanced
  • Category: Switches
  • Temperature Range: -40°C to 85°C
