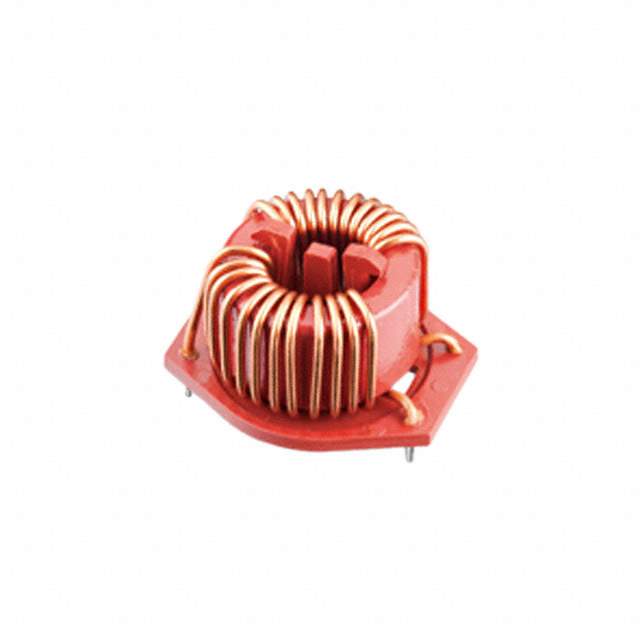

744834433 Real Image1 744834433 Real Image2
Same model may have multiple batches, images only for reference.
744834433 Real Image1 744834433 Real Image2
744834433 Real Image1 744834433 Real Image2
Same model may have multiple batches, images only for reference.

744834433

Part No 744834433
Manufacturer Wurth Electronics Inc
Catalog Common Mode Chokes
Description CMC 3.3MH 5A 2LN TH / 3.3 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 5A DCR 37mOhm
Datasheet
744834433 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr Wurth Electronics Inc
Series WE-CMBH
Package Tray
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 3.3 mH @ 10 kHz
Current Rating (Max) 5A
DC Resistance (DCR) (Max) 37mOhm
Voltage Rating - DC -
Voltage Rating - AC 250V
Temperature Range - Operating -40°C ~ 125°C
Ratings -
Approval Agency -
Features -
Mounting Type Through Hole
Size / Dimension 1.280" L x 1.102" W (32.50mm x 28.00mm)
Height (Max) 0.866" (22.00mm)
Package / Case Horizontal, 4 PC Pin
Moisture Sensitivity Level (MSL) Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Standard Package 35 pcs
Win Source Part Number 1381128-744834433
Ultra Librarian 3D Model Ultra Librarian 744834433 CAD Model

Description

The 1198264 is a common mode choke from the WE-CMBH series by Wurth Electronics Inc.

  • Mounting Type: Through Hole
  • Size: 1.280" L x 1.102" W (32.50mm x 28.00mm)
  • Height: 0.866" (22.00mm)
  • Voltage Rating: 250V
  • Current Rating: 5A
  • Inductance: 3.3 mH @ 10 kHz
  • DC Resistance (DCR): 37mOhm maximum
  • Application: Power Line Filtering
  • Operating Temperature: -40°C to 125°C
  • Package: Tray
  • Pieces Per Package: 35
