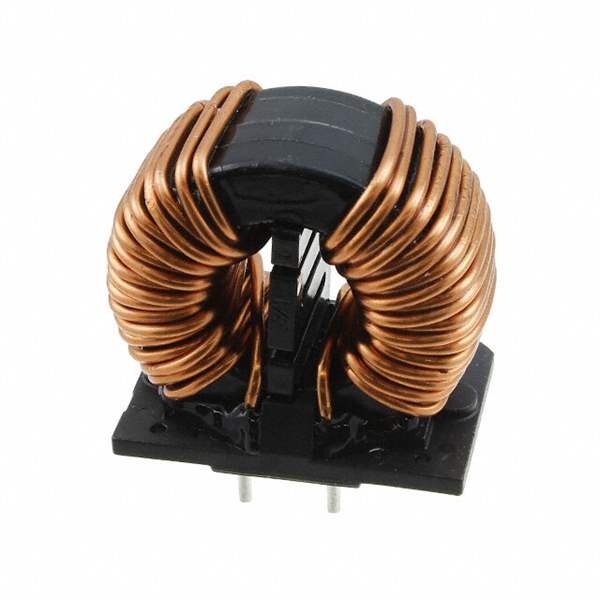

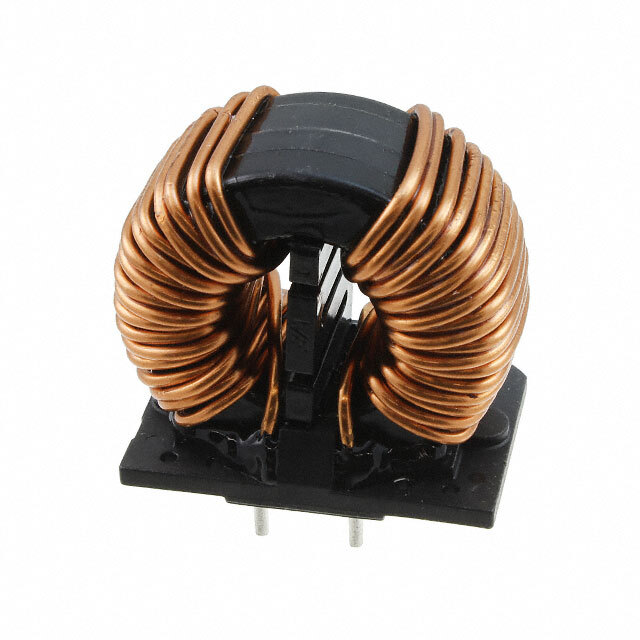

7448026002 Wurth Electronics Inc – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

7448026002

Part No 7448026002
Manufacturer Wurth Electronics Inc
Catalog Common Mode Chokes
Description CMC 1.5MH 6A 2LN TH
Datasheet
7448026002 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 1.5 mH @ 10 kHz
Current Rating (Max) 6A
DC Resistance (DCR) (Max) 8mOhm
Voltage Rating - AC 300V
Temperature Range - Operating -55° C ~ 125°C
Features Nanocrystalline Core
Mounting Type Through Hole
Size / Dimension 0.748" L x 0.551" W (19.00mm x 14.00mm)
Height (Max) 0.866" (22.00mm)
Case / Package Vertical, 4 PC Pin
Package Tray
Supply and Demand Status Shortage
Win Source Part Number 1507162-7448026002
Ultra Librarian 3D Model Ultra Librarian 7448026002 CAD Model
