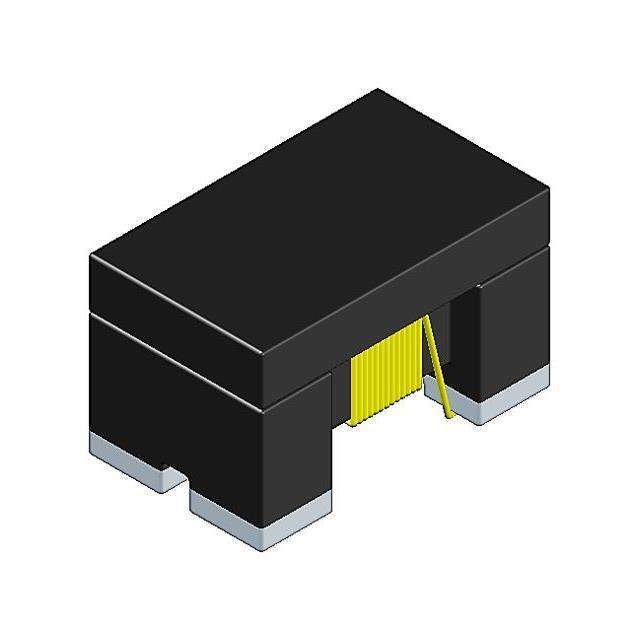

ACM 3225F2DV-101T01-D

Part No ACM 3225F2DV-101T01-D
Manufacturer TAI-TECH Advanced Electronics
Catalog Common Mode Chokes
Description 100 UH @ 100 KHZ 2 LINE COMMON M / 100 µH @ 100 kHz 2 Line Common Mode Choke Surface Mount 5.1 kOhms @ 10 MHz 150mA DCR 1.5Ohm
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr TAI-TECH Advanced Electronics
Series ACM3225F2DV-D
Package Tape & Reel
Filter Type Signal Line
Number of Lines 2
Impedance @ Frequency 5.1 kOhms @ 10 MHz
Inductance @ Frequency 100 µH @ 100 kHz
Current Rating (Max) 150mA
DC Resistance (DCR) (Max) 1.5Ohm
Voltage Rating - DC 80V
Voltage Rating - AC -
Temperature Range - Operating -55°C ~ 150°C
Ratings AEC-Q200
Approval Agency -
Features -
Mounting Type Surface Mount
Size / Dimension 0.130" L x 0.098" W (3.30mm x 2.50mm)
Height (Max) 0.098" (2.50mm)
Package / Case Horizontal, 4 PC Pad
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
Standard Package 2,000 pcs
Win Source Part Number 1381306-ACM 3225F2DV-101T01-D
Ultra Librarian 3D Model Ultra Librarian ACM 3225F2DV-101T01-D CAD Model

Description

The 1381306-ACM 3225F2DV-101T01-D is a common mode choke filter designed for signal line applications.

  • Series: ACM3225F2DV-D
  • Voltage Rating: 80V DC
  • Size / Dimension: 0.130" L x 0.098" W (3.30mm x 2.50mm)
  • Height - Seated (Max): 0.098" (2.50mm)
  • Current Rating: 150mA
  • Impedance: 5.1 kOhms @ 10 MHz
  • Inductance: 100µH @ 100 kHz
  • DC Resistance (Max): 1.5 Ohm
  • Mounting Type: Surface Mount
  • Package / Case: Horizontal, 4 PC Pad
  • Operating Temperature: -55°C to 150°C
