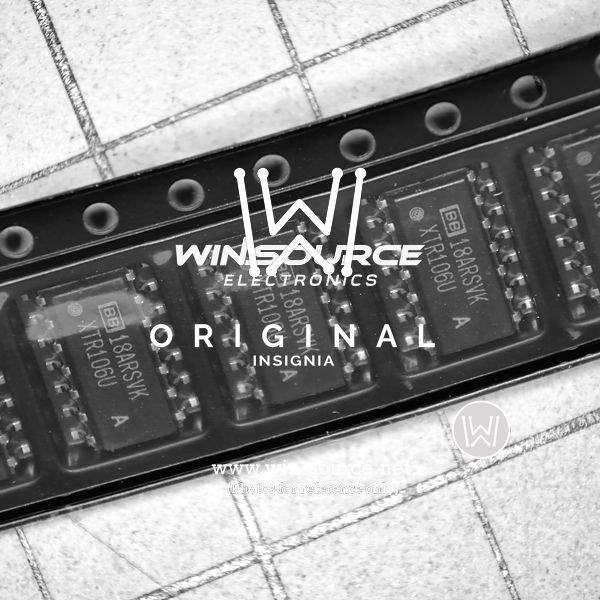

The XTR106U is a high-precision, low-power, two-wire, current-loop transmitter integrated circuit designed by Texas Instruments. This robust component is specifically engineered to provide a reliable interface between temperature or pressure sensors and standard 4-20mA current-loop systems, making it an ideal choice for industrial process control and factory automation applications.

Key Features

• Two-Wire 4-20mA Current Loop: The XTR106U operates on a two-wire system, which is the industry standard for transmitting analog signals over long distances with high immunity to noise.
• Low Power Consumption: Designed for efficiency, the XTR106U consumes minimal power, making it suitable for battery-powered and remote systems.
• High Accuracy: With a precision current output, the XTR106U ensures accurate data transmission, which is critical for process control applications.
• Built-in Sensor Excitation: The device includes a regulated voltage output that can be used to power sensors, eliminating the need for additional components.
• Flexible Input Signal Range: It accepts a wide range of input signals from various sensors, including bridge-type sensors for pressure, strain, and force measurements.
• Programmable Output: The output current can be programmed with external resistors, allowing customization to specific application requirements.
• Temperature Compensation: The XTR106U includes temperature compensation features that ensure stable performance across a wide temperature range.
• Protection Features: It is equipped with overvoltage protection and output current limiting to safeguard against potential damage from external faults.

Applications

The XTR106U is versatile and can be used in a variety of industrial applications, including:

• Process control systems
• Factory automation
• Temperature and pressure monitoring
• PLC interface modules
• Remote data acquisition

With its combination of accuracy, reliability, and ease of use, the XTR106U from Texas Instruments stands out as a top choice for professionals seeking to enhance their control systems with high-quality signal transmission capabilities.
