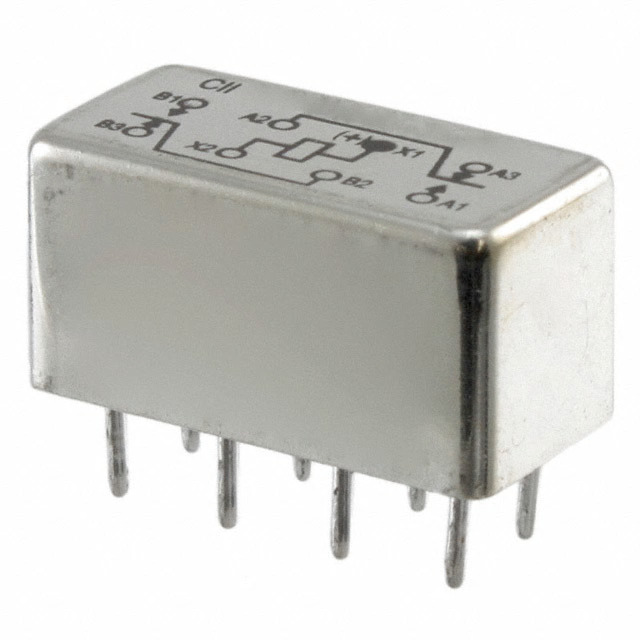

HFW1201K45M TE Connectivity
Same model may have multiple batches, images only for reference.

HFW1201K45M

Part No HFW1201K45M
Manufacturer TE Connectivity
Catalog Signal Relays, Up to 2 Amps
Description RELAY GEN PURPOS DPDT 2A 26.5VDC
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer TE Connectivity Aerospace, Defense and Marine
Packaging Bulk
Mounting Style Through Hole
Coil Voltage 26.5VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 2A
Switching Voltage 28VDC - Nom
Coil Current 37.9mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Hermetically
Must Operate Voltage 13.5 VDC
Must Release Voltage 1.5 VDC
Operate Time 4ms
Release Time 4ms
Temperature Range - Operating -65°C ~ 125°C
Relay Type General Purpose
Coil Resistance 700 Ohms
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Popularity Low
Supply and Demand Status Limited
Win Source Part Number 813067-HFW1201K45M
Ultra Librarian 3D Model Ultra Librarian HFW1201K45M CAD Model

Description

The TE Connectivity Aerospace, Defense and Marine HFW1201K45M is a general-purpose relay.

  • Contact Form: DPDT (2 Form C)
  • Coil Resistance: 700 Ohms
  • Coil Voltage: 26.5VDC
  • Operating Temperature: -65°C to 125°C
  • Supply and Demand Status: Limited
