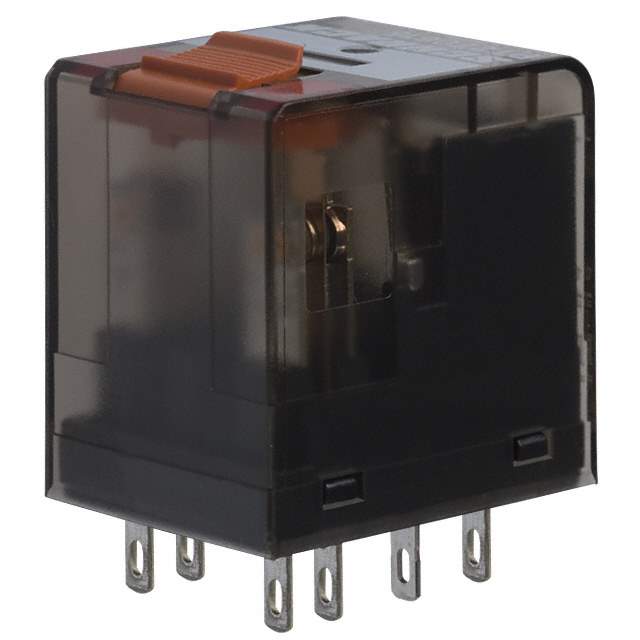

5-1415002-1 Real Image
Same model may have multiple batches, images only for reference.

5-1415002-1

Part No 5-1415002-1
Manufacturer TE Connectivity
Catalog Signal Relays, Up to 2 Amps
Description Electromechanical Relay 24VDC 777Ohm 20A 3PDT(28x22.5x35)mm Plug-In Industrial Relay Automotive
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Coil Current 30.8 mA
Coil Power 741 mW
Coil Resistance 777 Ω
Coil Type Non-Latching
Coil Voltage (DC) 24 V
Contact Current Rating 10 A
Contact Material Silver
Contact Voltage Rating (AC) 240 V
Current Rating 10 A
Depth 22.5 mm
Dropout Voltage 2.4 V
ELV Compliant
Height 29 mm
Length 28 mm
Max Current Rating 20 A
Maximum Operating Temperature 70 °C
Max Voltage Rating (AC) 400 V
Min Operating Temperature -40 °C
Mount Plug-In, Socket, Socketable
Number of Pins 11
Operate Time 15 ms
Packaging Bulk
Radiation Hardening No
Relay Type General Purpose
Release Time 10 ms
RoHS Compliant
Termination Plug
Throw Configuration 3PDT
Voltage Rating (AC) 400 V
Voltage Rating (DC) 24 V
Weight 30 g
Width 22.5 mm
Win Source Part Number 1007507-5-1415002-1
Categories Signal Relays,Up to 2 Amps
Manufacturer TE Connectivity
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 5-1415002-1 CAD Model

Description

This TE Connectivity General Purpose Non-Latching Relay is a high-quality component designed for use in a variety of electronic applications.

  • Contact Material: silver
  • Current Rating: 10 A
  • Termination: plug
  • Mount: socketable
  • Coil Resistance: 777 Ω
  • Coil Current: 30.8 mA
  • Throw Configuration: 3PDT
  • Pins: 11
  • Operate Time: 15 ms
  • Release Time: 10 ms
  • RoHS Compliant: Yes
  • ELV Regulations: Yes
  • Maximum Operating Temperature: 70 °C
