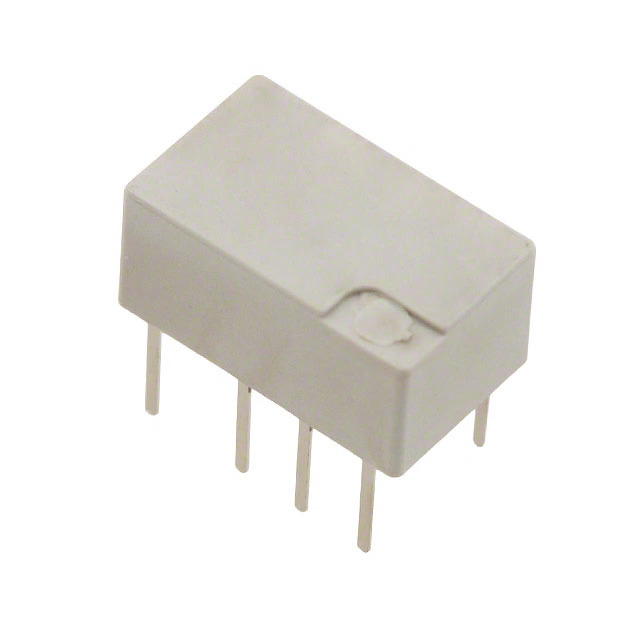

IM07TS TE Connectivity
Same model may have multiple batches, images only for reference.

IM07TS

Part No IM07TS
Manufacturer TE Connectivity
Catalog Signal Relays, Up to 2 Amps
Description The Best Relaytion | RELAY TELECOM DPDT 2A 24VDC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer TE Connectivity Potter & Brumfield Relays
Packaging Tube
Mounting Style Through Hole
Coil Voltage 24VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 2A
Switching Voltage 250VAC, 220VDC - Max
Coil Current 8.3mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Hermetically
Must Operate Voltage 18 VDC
Must Release Voltage 2.4 VDC
Operate Time 3ms
Release Time 3ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Palladium (Pd), Ruthenium (Ru), Gold (Au)
Relay Type Telecom
Coil Resistance 2.88 kOhms
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Win Source Part Number 1185541-IM07TS
Manufacturer Homepage www.macom.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian IM07TS CAD Model

Description

The TE Connectivity Potter & Brumfield Relays IM07TS is a DPDT (2 Form C) telecom relay that has a coil voltage of 24VDC.

  • Contact Rating: 2A
  • Switching Voltage: 250VAC/220VDC - Max
  • Coil Resistance: 2.88 kOhms
  • Coil Current: 8.3mA
  • Operate Time: 3ms
  • Release Time: 3ms
  • Sealed-Hermetically: Yes
  • Popularity: Medium
  • Win Source Part Number: 1185541-IM07TS
