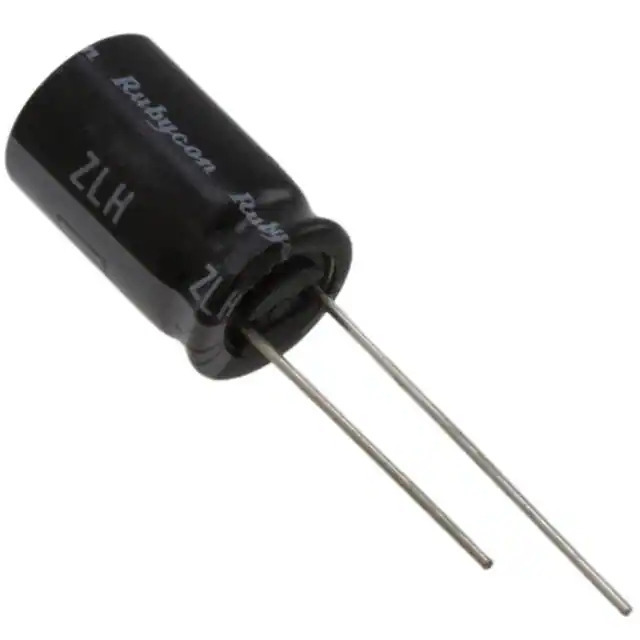

Products specifications

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series ZLH
Product Status Active
Capacitance 220 µF
Tolerance ±20%
Voltage - Rated 50 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 10000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 685 mA @ 120 Hz
Impedance 42 mOhms
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.689" (17.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357607-50ZLH220MEFCT810X16
Ultra Librarian 3D Model Ultra Librarian 50ZLH220MEFCT810X16 CAD Model

Description

The Rubycon ZLH series aluminum electrolytic capacitor is a high-quality component designed for general-purpose applications.

  • Series: ZLH
  • Manufacturer: Rubycon
  • Capacitance: 220 μF
  • Voltage Rating: 50 V
  • Tolerance: ±20%
  • ESR: 42 mOhms
  • Lifetime: 10,000 hours @ 105°C
  • Package: Radial, Can
  • Diameter: 10.00mm
  • Height: 17.50mm
  • Mounting Type: Through-Hole
  • Lead Spacing: 5.00mm
  • Product Status: Active
  • REACH: Unaffected
  • Application: General Purpose
