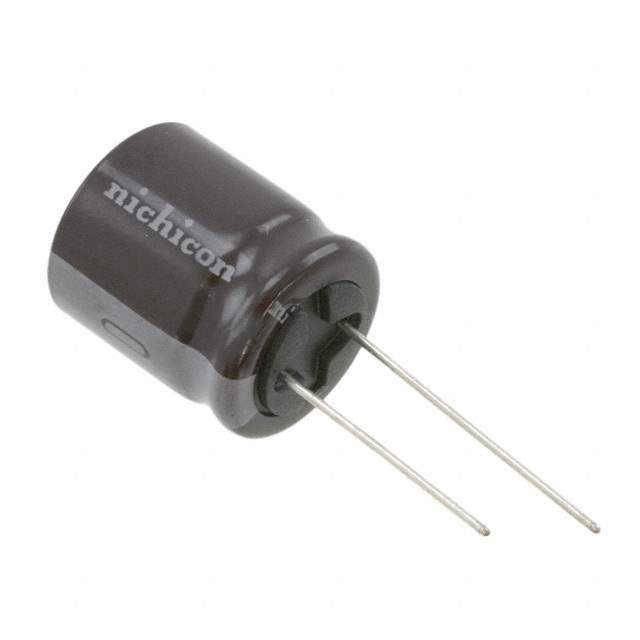

UCS2E101MHD Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Capacitors
Manufacturer Nichicon
Series UCS
Packaging Bulk
Capacitance 100μF
Tolerance ±20%
Voltage Rating DC 250V
Lifetime @ Temp. 10000 Hrs @ 105°C
Operating Temperature Range -40°C ~ 105°C
Polarization Polar
Applications General
Ripple Current - Low Frequency 765mA @ 120Hz
Ripple Current - High Frequency 1.53A @ 100kHz
Lead Spacing 0.295" (7.50mm)
Dimension 0.630" Dia (16.00mm)
Height - Seated (Maximum) 1.043" (26.50mm)
Mounting Style Through Hole
Package Radial, Can
Win Source Part Number 798761-UCS2E101MHD
Popularity Medium
Supply and Demand Status Limited
Family Name UCS
Country of Origin China, Japan, Malaysia
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian UCS2E101MHD CAD Model

Description

The Nichicon capacitor is a high-quality component designed for use in a variety of electronic devices.

  • Capacitance: 100μF
  • Voltage Rating DC: 250V
  • Mounting: Through-hole
  • Cross-Reference: Yes
  • EOL Date: 2029 (Estimated)
