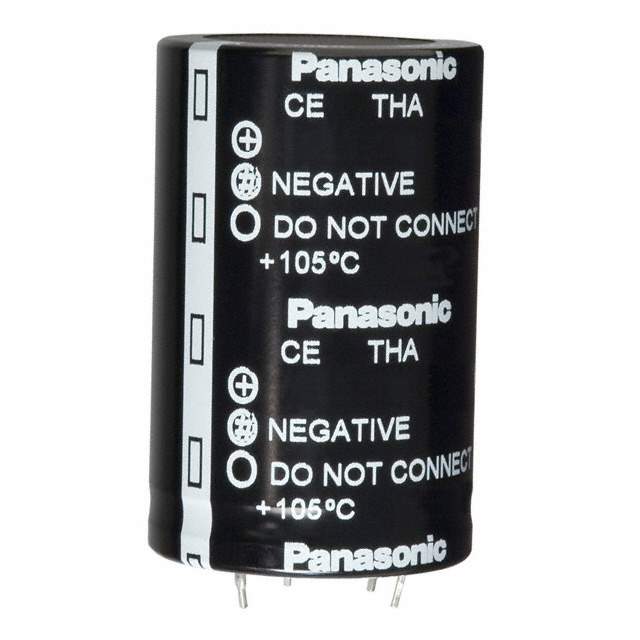

Same model may have multiple batches, images only for reference.

ECE-T1HA273FA

Get a Quote

Part No	ECE-T1HA273FA
Manufacturer	Panasonic
Catalog	Aluminum Capacitors
Description	CAP ALUM 27000UF 20% 50V SNAP / 27000 µF 50 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In - 4 Lead 15mOhm 3000 Hrs @ 105°C
Datasheet	ECE-T1HA273FA Datasheet
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Mfr	Panasonic Electronic Components
Series	T-HA
Package	Bulk
Product Status	Obsolete
Capacitance	27000 µF
Tolerance	±20%
Voltage - Rated	50 V
ESR (Equivalent Series Resistance)	15mOhm
Lifetime @ Temp.	3000 Hrs @ 105°C
Temperature Range - Operating	-40°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	6.05 A @ 120 Hz
Ripple Current @ High Frequency	6.958 A @ 10 kHz
Lead Spacing	0.886" (22.50mm)
Dimension	1.575" Dia (40.00mm)
Height - Seated (Max)	2.480" (63.00mm)
Mounting Type	Through Hole
Package / Case	Radial, Can - Snap-In - 4 Lead
Base Product Number	ECE-T1
MSL Level	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8532.22.0055
Other Names	ECET1HA273FA,P10634
Standard Package	50
Win Source Part Number	1061717-ECE-T1HA273FA
Ultra Librarian 3D Model	Ultra Librarian ECE-T1HA273FA CAD Model

Description

The ECE-T1HA273FA capacitor is a high-quality aluminum electrolytic capacitor that belongs to the T-HA series.

Application: General-purpose applications
Capacitance: 27000 µF
Voltage Rating: 50 V
Mounting Type: Through-hole
Package/Case: Radial, can-snap-in-4-lead
Standard Package: 50
Tolerance: ±20%
Height: 2.480" (63.00mm) when seated
Lifetime: 3000 Hrs @ 105°C
Polarized: Yes
ESR: 15mOhm
Ripple Current: 6.05 A @ 120 Hz and 6.958 A @ 10 kHz
Product Status: Obsolete product from Panasonic Electronic Components
