Same model may have multiple batches, images only for reference.

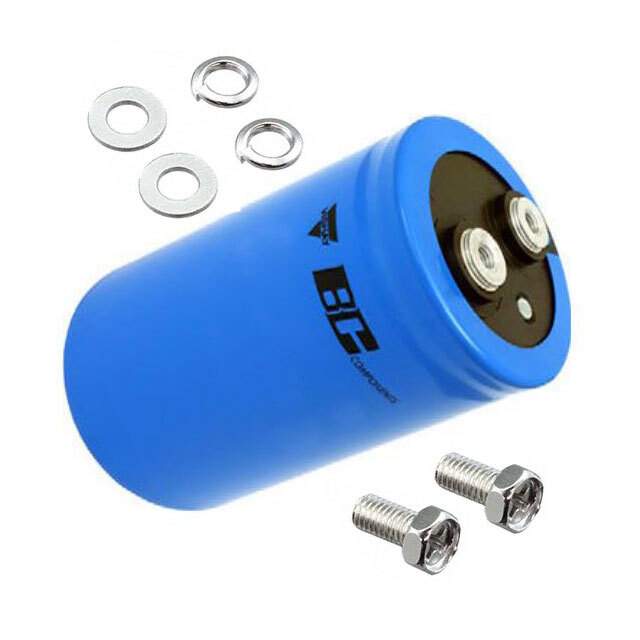

MAL210618103E3 Real Image
Same model may have multiple batches, images only for reference.

MAL210618103E3

Part No MAL210618103E3
Manufacturer Vishay
Catalog Aluminum Capacitors
Description CAP ALUM 10000UF 63V SCREW / 10000 µF 63 V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 12mOhm @ 100Hz 20000 Hrs @ 85°C
Datasheet
MAL210618103E3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Vishay Beyschlag/Draloric/BC Components
Series 106 PED-ST
Package Bulk
Capacitance 10000 µF
Tolerance -10%, +30%
Voltage - Rated 63 V
ESR (Equivalent Series Resistance) 12mOhm @ 100Hz
Lifetime @ Temp. 20000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 17 A @ 100 Hz
Impedance 9 mOhms
Lead Spacing 0.874" (22.20mm)
Dimension 1.969" Dia (50.00mm)
Height - Seated (Max) 3.535" (89.80mm)
Mounting Type Chassis Mount
Package / Case Radial, Can - Screw Terminals
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0055
Standard Package 25
Win Source Part Number 1228529-MAL210618103E3
Ultra Librarian 3D Model Ultra Librarian MAL210618103E3 CAD Model

Description

The 1228529-MAL210618103E3 aluminum electrolytic capacitor from Vishay Beyschlag/Draloric/BC Components is an excellent choice for general-purpose applications.

  • Capacitance: 10000 µF
  • Tolerance: -10%, +30%
  • Voltage Rating: 63 V
  • Lead Spacing: 0.874 inches
  • Impedance: 9 mOhms
  • ESR: 12mOhm @ 100Hz
  • Lifetime: 20000 hours @ 85°C
  • Polarization: polarized
  • RoHS Compliant: RoHS compliant
  • Ripple Current: 17 A @ 100 Hz
  • Application: chassis mount
