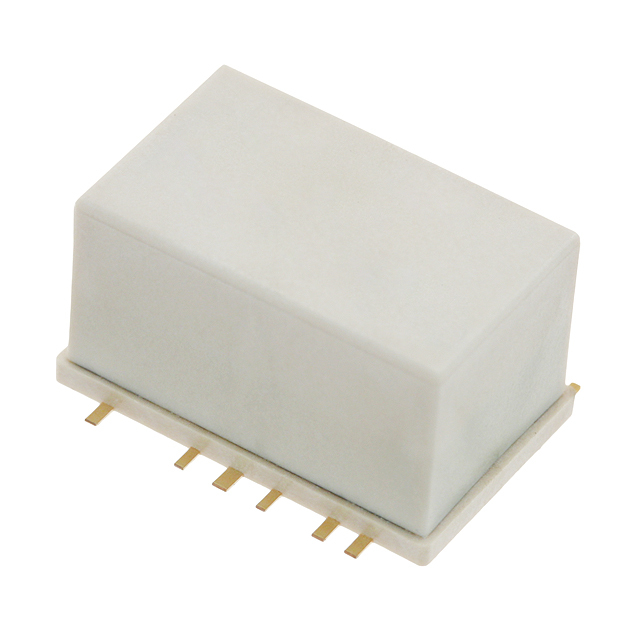

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Coil Type Latching, Single Coil
Coil Current 5.8 mA
Coil Voltage 12VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 1 A
Switching Voltage 30VDC - Max
Must Operate Voltage 9 VDC
Operate Time 4 ms
Release Time 4 ms
Mounting Type Surface Mount
Termination Style Gull Wing
Temperature Range - Operating -40°C ~ 85°C
Package Tube
Supply and Demand Status Shortage
Win Source Part Number 1549625-ARA210A12
Ultra Librarian 3D Model Ultra Librarian ARA210A12 CAD Model
