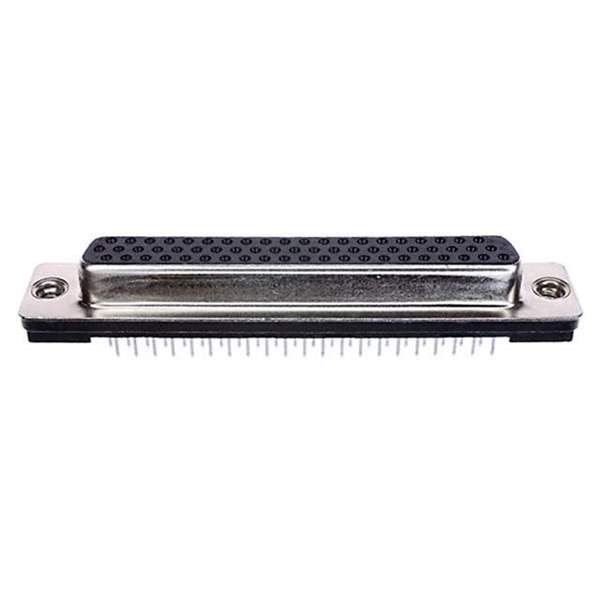

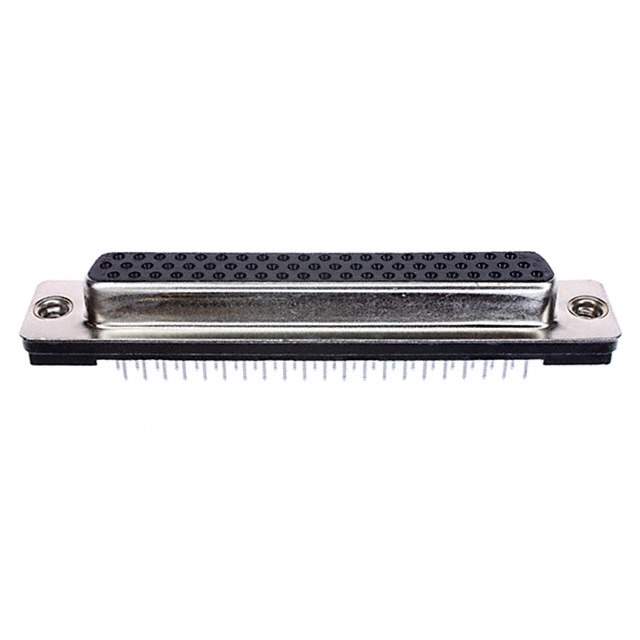

747786-6 Real Image
Same model may have multiple batches, images only for reference.

747786-6

Part No 747786-6
Manufacturer TE Connectivity
Catalog D - Sub Connectors
Description CONN D-SUB HD RCPT 62P VERT SLDR
Datasheet
747786-6 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Packaging Tray
Status Obsolete(EOL)
Connector Style D-Sub, High Density
Connector Type Receptacle, Female Sockets
Number of Positions 62
Number of Rows 3
Shell Size, Connector Layout 4 (DC, C) High Density
Contact Type Signal
Mounting Through Hole
Flange Feature Housing/Shell (4-40)
Termination Solder
Shell Material, Finish Steel, Nickel Plated
Contact Finish Gold
Contact Finish Thickness 30μin (0.76μm)
Material Flammability Rating UL94 V-0
Temperature Range - Operating -55°C to 105°C
Voltage Rating 125V
Current Rating 1.5A
Color Black
Housing Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Win Source Part Number 1007081-747786-6
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 747786-6 CAD Model

Description

The 747786-6 is a female socket receptacle connector from TE Connectivity AMP Connectors.

  • Connector Style: D-Sub, High Density
  • Color: Black
  • Contact Type: Signal
  • Mounting: Soldered
  • Contact Finish: Gold
  • Contact Finish Thickness: 30μin (0.76μm)
  • Housing Material: Polybutylene Terephthalate (PBT), Polyester, Glass Filled
  • Shell Material: Steel, Nickel Plated
  • Shell Size: 4 (DC, C) High Density
  • Voltage Rating: 125V
  • Current Rating: 1.5A
  • Temperature Range: -55°C to 105°C
