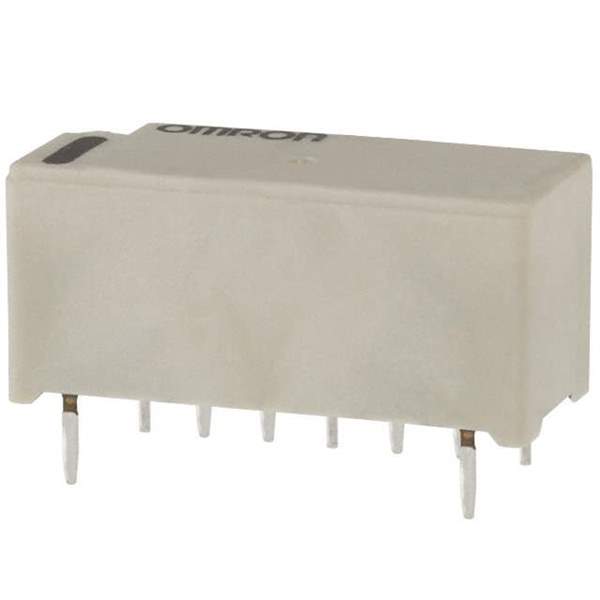

G6Z-1PE DC24 Real Image

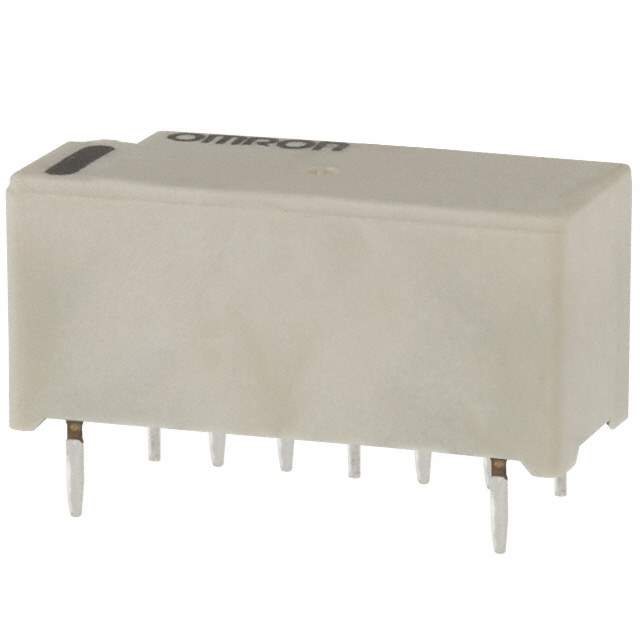

Same model may have multiple batches, images only for reference.

G6Z-1PE DC24

Part No G6Z-1PE DC24
Manufacturer Omron
Catalog High Frequency (RF) Relays
Description RELAY RF SPDT 10MA 24V
Datasheet
G6Z-1PE DC24 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>High Frequency (RF) Relays
Mfr Omron Electronics Inc-EMC Div
Series G6Z
Package Tube
Product Status Obsolete
Coil Type Non Latching
Coil Current 8.3 mA
Coil Voltage 24VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 10 mA
Switching Voltage 30VAC, 30VDC - Max
Must Operate Voltage 18 VDC
Must Release Voltage 2.4 VDC
Operate Time 10 ms
Release Time 10 ms
Features Sealed - Fully
Mounting Type Through Hole
Termination Style PC Pin
Temperature Range - Operating -40°C ~ 70°C
Contact Material Copper (Cu), Gold (Au)
Coil Power 200mW
Coil Resistance 2.88 kOhms
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 1315321-G6Z-1PE DC24
Ultra Librarian 3D Model Ultra Librarian G6Z-1PE DC24 CAD Model

Description

The Omron 1315321-G6Z-1PE DC24 relay is a high-frequency (RF) relay with a sealed, fully-featured design.

  • Termination Style: PC Pin
  • Package: Tube
  • Contact Form: SPDT (1 Form C)
  • Contact Material: Copper (Cu), Gold (Au)
  • Coil Resistance: 2.88 kOhms
  • Coil Current: 8.3 mA
  • Operate Time: 10 ms
  • Release Time: 10 ms
  • Coil Type: Non-Latching
  • Coil Voltage: 24VDC
  • Switching Voltage: 30VAC, 30VDC - Max
  • Contact Rating (Current): 10 mA
  • Product Status: Obsolete
