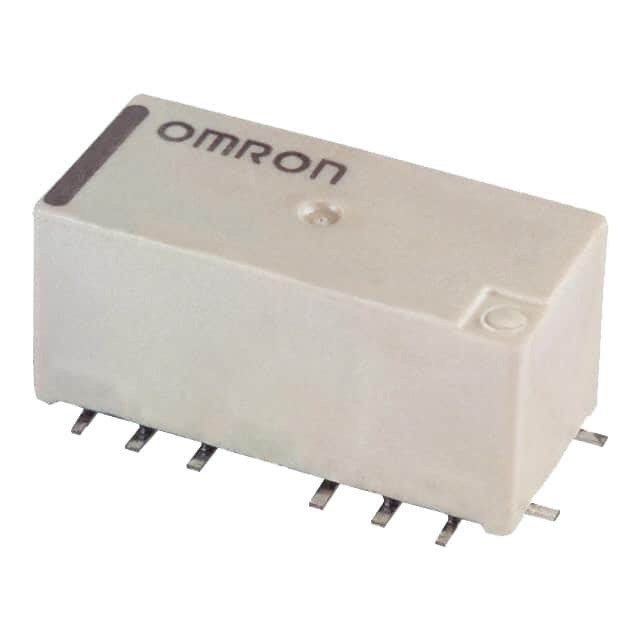

G6W-1F DC4.5
Same model may have multiple batches, images only for reference.

G6W-1F DC4.5

Part No G6W-1F DC4.5
Manufacturer Omron
Catalog High Frequency (RF) Relays
Description RELAY RF SPDT 10MA 4.5V
Datasheet
G6W-1F DC4.5 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - High Frequency (RF) Relays
Mfr Omron
Series G6W
Package Bulk
Product Status Obsolete
Coil Type Non Latching
Coil Current 44.4 mA
Coil Voltage 4.5VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 10 mA
Switching Voltage 30VAC, 30VDC - Max
Must Operate Voltage 3.6 VDC
Must Release Voltage 0.45 VDC
Operate Time 10 ms
Release Time 10 ms
Features Sealed - Fully
Mounting Type Surface Mount
Termination Style Gull Wing
Temperature Range - Operating -40°C ~ 70°C
Contact Material Copper (Cu), Gold (Au)
Coil Power 200mW
Coil Resistance 101 Ohms
Standard Package 50 pcs
Moisture Sensitivity Level (MSL) Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 846736-G6W-1F DC4.5
Ultra Librarian 3D Model Ultra Librarian G6W-1F DC4.5 CAD Model

Description

The G6W-1F DC4.5 relay is a high-frequency (RF) relay designed for various applications. Omron manufactures it.

  • Termination Style: Gull wing
  • Protection: Fully Sealed
  • Contact Form: SPDT (1 Form C)
  • Contact Material: Copper (Cu) and Gold (Au)
  • Coil Resistance: 101 Ohms
  • Coil Current: 44.4 mA
  • Relay Type: Non-Latching
  • Operate Time: 10 ms
  • Release Time: 10 ms
  • Coil Voltage: 4.5VDC
  • Contact Rating: 10 mA
  • Switching Voltage: 30VAC and 30VDC maximum
  • Mounting: Surface mountable
  • Temperature Range: -40°C to 70°C
  • Package: Bulk
  • Quantity: 50 pcs
  • Product Status: Obsolete
