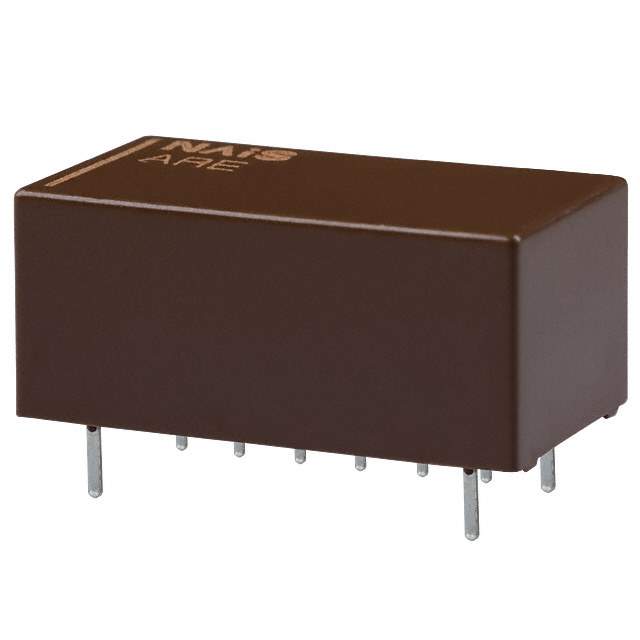

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Relays>High Frequency (RF) Relays
Mfr Panasonic Electric Works
Series ARE
Package Bulk
Product Status Obsolete
Coil Type Non Latching
Coil Current 16.7 mA
Coil Voltage 12VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 500 mA
Switching Voltage 30VDC - Max
Must Operate Voltage 9 VDC
Must Release Voltage 1.2 VDC
Operate Time 10 ms
Release Time 5 ms
Mounting Type Through Hole
Termination Style PC Pin
Temperature Range - Operating -40°C ~ 70°C
Contact Material Gold Plating
Coil Power 200mW
Coil Resistance 720 Ohms
Base Product Number ARE13
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.41.0020
Other Names 255-1572
Standard Package 50
Win Source Part Number 1045936-ARE1312
Ultra Librarian 3D Model Ultra Librarian ARE1312 CAD Model

Description

The Panasonic Electric Works ARE13 series high frequency relay is a non-latching coil type SPDT (1 Form C) contact form relay.

  • Coil Voltage: 12VDC
  • Coil Resistance: 720 Ohms
  • Coil Current: 16.7 mA
  • Contact Material: Gold plating
  • Contact Rating (Current): 500 mA
  • Switching Voltage: 30VDC
  • Release Time: 5 ms
  • Mounting: Through hole
  • Temperature Range: -40°C to 70°C
  • Packaging: Bulk
  • Standard Package: 50
  • Status: Obsolete product
  • Alternative Parts: ARE1012, ARS1412, ARE13A12, and 3-1393763-2
  • Must Operate Voltage: 9VDC
  • Must Release Voltage: 1.2VDC
  • HTSUS Code: 8536.41.0020
  • Also Known As: 255-1572
