Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer NXP
Packaging Reel - TR
Status Obsolete(EOL)
Frequency 315MHz, 434MHz
Sensitivity -105dBm
Data Rate (Max) 11 kBaud
Modulation or Protocol FSK, OOK
Applications General Data Transfer
Current - Receiving 5.7mA
Data Interface PCB, Surface Mount
Antenna Connector PCB, Surface Mount
Supply Voltage - Operating 4.5 V to 5.5 V
Temperature Range - Operating -40°C to 105°C
Case / Package 24-LQFP (4x4)
Win Source Part Number 1073403-MC33594FTAER2
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian MC33594FTAER2 CAD Model

Description

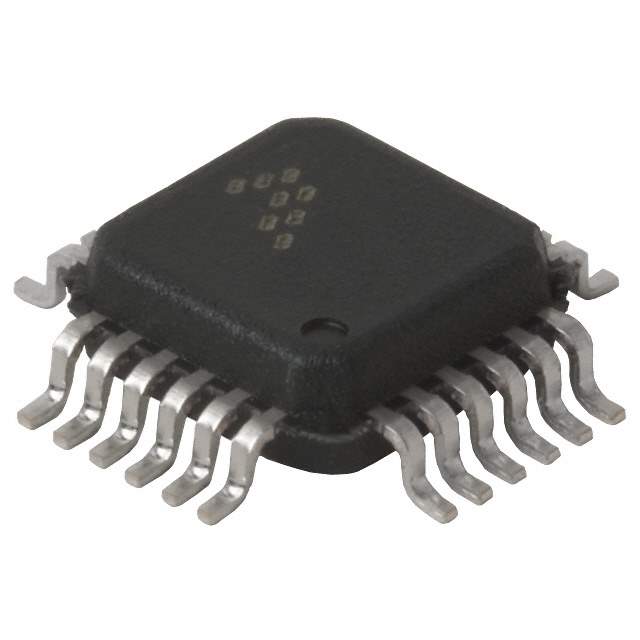

Product Overview: MC33594FTAER2 by NXP

The MC33594FTAER2 is a sophisticated low power sub-1 GHz receiver integrated circuit (IC) designed and manufactured by NXP Semiconductors, a leader in the field of high-performance mixed-signal electronics. This IC is specifically tailored for the reception of Frequency Shift Keying (FSK) and Amplitude Shift Keying (ASK) modulated signals, making it an ideal choice for a variety of wireless communication applications.

Key Features

  • Frequency Range: The MC33594FTAER2 operates in the sub-1 GHz frequency band, providing flexibility for use in numerous regions and applications, including but not limited to automotive remote keyless entry (RKE), tire pressure monitoring systems (TPMS), and wireless sensor networks.
  • Modulation Support: With built-in support for both FSK and ASK modulations, this IC can handle a wide array of communication protocols, making it highly versatile for different wireless communication standards.
  • Low Power Consumption: Designed with power efficiency in mind, the MC33594FTAER2 is optimized for battery-powered devices, ensuring extended operational life and reliability.
  • Integrated Features: The IC includes an integrated low noise amplifier (LNA), a frequency synthesizer, and a fully integrated VCO, among other features, to minimize external component count and simplify design.
  • Selectable Data Rates: It supports various data rates, allowing designers to choose the optimal speed for their specific application requirements.

Applications

The versatility of the MC33594FTAER2 makes it suitable for a broad range of applications in the industrial, automotive, and consumer electronics sectors. Its reliability and low power consumption are particularly advantageous for portable and remote applications where power efficiency is critical.

Quality and Reliability

NXP's commitment to quality ensures that the MC33594FTAER2 meets stringent industry standards, providing a reliable solution for system designers. The IC is available in a compact QFN package, which is conducive to modern, space-constrained designs.

Conclusion

The MC33594FTAER2 from NXP stands out as a robust, low-power receiver IC for sub-1 GHz wireless applications. Its support for multiple modulation techniques, combined with its integrated features and flexibility in data rates, make it a highly adaptable solution for a wide range of wireless communication needs.
