Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Microchip Technology
Packaging Tube/Rail
Type Hot Swap Controller
Number of Channels 1
Applications InfiniBand
Features Auto Retry, OVP
Programmable Features Current Limit, Fault Timeout, Slew Rate
Supply Voltage - Operating 2.3 V to 16.5 V
Temperature Range - Operating -40°C to 85°C
Operating Supply Current 1.6mA
Mounting SMD (SMT)

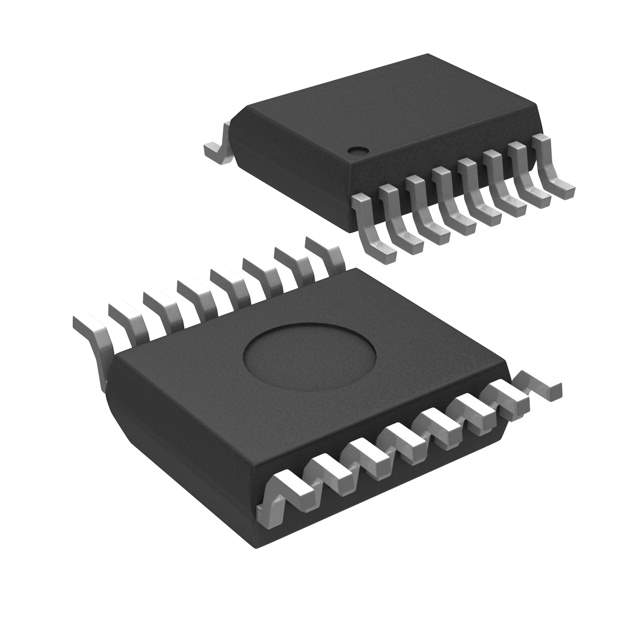

Case / Package 16-QSOP
Feature Pins CFILTER, COMP+, COMP-, COMPOUT, CPOR, CRWBR, DIS, /FAULT, FB, ON, OV, /POR, PWRGD, REF
Win Source Part Number 044701-MIC2085-JBQS
Ultra Librarian 3D Model Ultra Librarian MIC2085-JBQS CAD Model

Description

Microchip Technology's MIC2085-JBQS Product Overview

The MIC2085-JBQS is a robust, high-performance single-channel power distribution switch from Microchip Technology, a leader in the field of smart, connected, and secure embedded control solutions. Designed for applications requiring efficient power management, this device is an ideal solution for USB and other hot-swap applications.

Key Features

  • Current Limiting: The MIC2085-JBQS provides precise current limiting to protect the host device from over-current conditions. This feature ensures safe operation and extends the longevity of the system.
  • Thermal Shutdown: With an integrated thermal shutdown mechanism, the device safeguards itself and the system from excessive temperature, preventing damage due to overheating.
  • Fast Short-Circuit Response: The device is engineered to respond swiftly to short-circuit conditions, minimizing the risk to connected components.
  • Under-voltage Lockout (UVLO): The UVLO feature ensures that the switch remains off if the input voltage is below a certain threshold, thereby protecting downstream circuits.
  • Controlled Rise Time: The MIC2085-JBQS is designed with a controlled output rise time to reduce inrush current, which is particularly beneficial in sensitive applications where gradual power application is necessary.
  • Reverse Current Flow Blocking: This feature prevents current from flowing backward through the switch when it is powered off, protecting the source from potential damage.

Applications

The versatility of the MIC2085-JBQS makes it suitable for a wide array of applications, including but not limited to:

  • USB hubs, peripherals, and powered ports
  • Hot-swap supplies
  • Portable consumer electronics
  • Industrial controls

Quality and Reliability

Microchip Technology is known for its commitment to quality, and the MIC2085-JBQS is no exception. It is built to meet high standards of reliability and performance, ensuring that it can withstand the rigors of everyday use in a variety of settings. Whether you're integrating it into a consumer device or an industrial system, you can trust the MIC2085-JBQS to deliver consistent, reliable power management.

With its advanced features and robust design, the MIC2085-JBQS from Microchip Technology stands out as a superior choice for designers looking to enhance the safety and efficiency of their power distribution systems.
