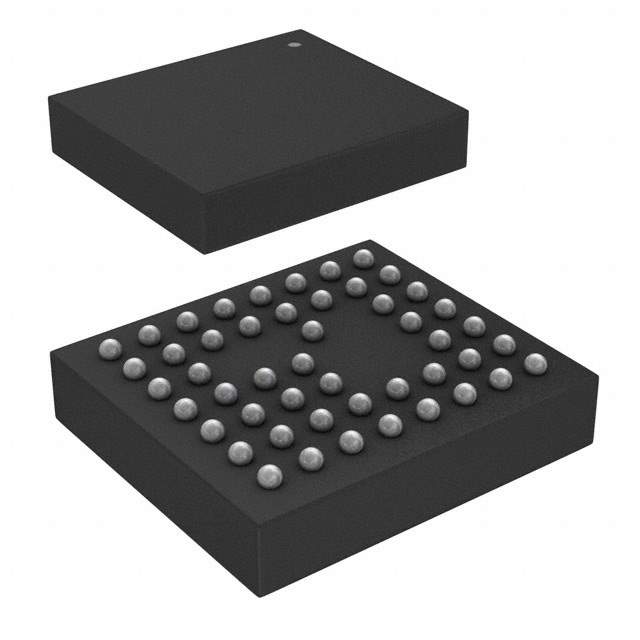

The BCM20706UA1KFFB1GT is a Bluetooth 3.0 single-chip solution manufactured by Cypress Semiconductor Corp (formerly Broadcom). This highly integrated device combines a Bluetooth radio, baseband, and microcontroller unit (MCU) to enable efficient and cost-effective wireless connectivity.

Applications

• Bluetooth headsets and headphones
• Bluetooth speakers
• Wireless mice and keyboards
• Game controllers
• Health and fitness devices

Features

• Bluetooth 3.0 compliant
• Integrated radio, baseband, and MCU
• Low power consumption
• Supports Enhanced Data Rate (EDR)
• Built-in power management

Benefits

• Enables wireless connectivity for a variety of devices
• Extends battery life in portable applications
• Reduces system cost and complexity
• Provides high-speed data transfer
• Simplifies Bluetooth integration

Additional Details

The BCM20706UA1KFFB1GT features a low-power architecture, making it ideal for battery-powered devices. It supports Bluetooth profiles such as A2DP, AVRCP, HFP, and HID, enabling a wide range of applications. The integrated MCU provides processing power for Bluetooth protocol stack and application software. The device also includes built-in security features to protect against unauthorized access. Its small form factor allows for easy integration into compact designs. The device operates in the 2.4 GHz ISM band. It requires an external antenna for wireless communication. Development tools and software libraries are available to simplify application development. It supports adaptive frequency hopping (AFH) to minimize interference with other wireless devices. The operating voltage range is typically 1.8V to 3.6V.
