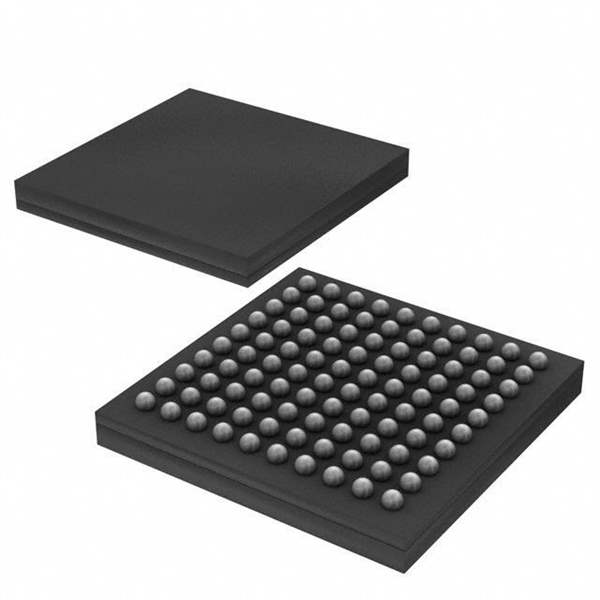

Maxim Integrated DS2155G+T&R Product Overview

The DS2155G+T&R from Maxim Integrated is a high-performance, single-chip transceiver that is specifically designed for T1/E1/J1 environments. This versatile integrated circuit (IC) is an ideal solution for communication applications requiring robust and reliable data transmission over telecommunication lines. The DS2155G+T&R is available in a compact surface-mount package, making it suitable for dense PCB layouts and modern, space-constrained designs.

Key Features

• Multi-Standard Support: The DS2155G+T&R supports T1, E1, and J1 standards, allowing for flexible deployment in various geographical regions without the need for multiple different chips.
• Integrated Jitter Attenuator: The inclusion of an on-chip jitter attenuator helps to maintain signal integrity by reducing the effects of signal distortion and timing errors.
• High-Level Integration: The device integrates line interface, framer, and LIU functions, which simplifies design and reduces external component count.
• Programmable: With a host of programmable features, the DS2155G+T&R allows customization for specific application requirements, enhancing its adaptability across different systems.
• Low Power Consumption: Designed with power efficiency in mind, this IC minimizes power consumption, making it suitable for power-sensitive applications.

Applications

The DS2155G+T&R is used in a wide range of telecommunication applications, including:

• Digital Loop Carrier Systems
• Wireless Base Station Controllers
• PBX Systems
• Channel Banks
• Test Equipment

Quality and Reliability

Maxim Integrated is known for its commitment to quality, and the DS2155G+T&R is no exception. It is manufactured using industry-leading techniques to ensure high reliability and performance under a variety of operating conditions. Furthermore, the device comes in tape and reel packaging (denoted by the T&R suffix), which facilitates automated pick-and-place assembly processes, thereby enhancing manufacturing efficiency and throughput.

Conclusion

The DS2155G+T&R transceiver from Maxim Integrated stands out as a comprehensive solution for T1/E1/J1 communication systems. Its combination of multi-standard support, integrated features, programmability, and low power consumption make it an excellent choice for designers looking to create efficient, reliable, and cost-effective telecommunication products.
