Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Linear Technology
Packaging Tray
Function Direct Conversion Subsystem
Frequency 700MHz ~ 2.7GHz
RF Type General
Secondary Attributes 1.92MHz Low Pass Filter
Package 204-BLGA
Manufacturer Package 204-LGA (22x15)
Win Source Part Number 784663-LTM9004CV-AA#PBF
Popularity Medium
Supply and Demand Status Limited
Family Name LTM9004
Introduction Date December 02, 2009
ECCN 5A991.b
Country of Origin Malaysia
Halogen Free Compliant
Estimated EOL Date 2031
Ultra Librarian 3D Model Ultra Librarian LTM9004CV-AA#PBF CAD Model

Description

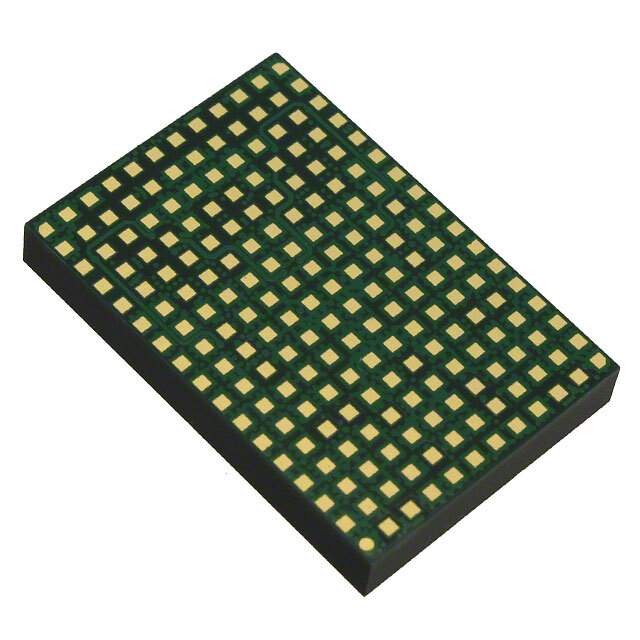

Product Overview: LTM9004CV-AA#PBF

The LTM9004CV-AA#PBF is a high-performance, complete system in a package (SiP) from Linear Technology that integrates a high-speed, 14-bit analog-to-digital converter (ADC) with a fixed gain differential amplifier and a high-quality passive filter. This meticulously designed product is part of Linear Technology's µModule (micro-module) family and is specifically engineered to simplify the design and enhance the performance of communication systems.

Key Features

  • Integrated ADC: The LTM9004CV-AA#PBF boasts a 14-bit, 125Msps ADC offering excellent dynamic performance, making it suitable for demanding applications that require high-speed data acquisition.
  • Fixed Gain Differential Amplifier: The onboard differential amplifier provides a fixed gain, ensuring consistent signal amplification while minimizing the need for external components.
  • Passive Filter: The integrated passive filter is designed to reduce out-of-band noise and interference, leading to a cleaner signal and improved overall system performance.
  • Space-Saving Design: The SiP design consolidates multiple functions into a single package, significantly reducing the required PCB space and simplifying the design process.
  • Easy Integration: With the critical signal conditioning components integrated into one package, the LTM9004CV-AA#PBF simplifies the design process, allowing for faster time-to-market.

Applications

The LTM9004CV-AA#PBF is ideal for a variety of applications where high-speed and precise data conversion is crucial. These include:

  • Wireless and Wired Broadband Communication
  • Medical Imaging Systems
  • Industrial Instrumentation
  • Radar and Satellite Communication Systems

Quality and Reliability

Linear Technology is known for its commitment to quality, and the LTM9004CV-AA#PBF is no exception. It is designed to meet rigorous standards, ensuring reliable performance in even the most demanding environments. The product is available in a rugged, thermally enhanced package, providing excellent thermal performance and long-term durability.

With its combination of high-speed data conversion, signal conditioning, and ease of integration, the LTM9004CV-AA#PBF from Linear Technology stands out as a comprehensive solution for designers looking to enhance their system's performance with minimal design complexity.
