Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Series Universal MATE-N-LOK
Packaging Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.250" (6.35mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 2
Number of Positions Loaded All
Number of Rows 1
Mounting Style Through Hole
Termination Solder
Fastening Type Locking Ramp
Contact Length - Post 0.155" (3.94mm)
Insulation Height 0.550" (13.97mm)
Contact Shape Circular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA), Nylon
Material Flammability Rating UL94 V-2
Insulation Color Natural
Applications General
Win Source Part Number 766640-350428-1
Popularity Medium
Supply and Demand Status Limited
Family Name 350428
Introduction Date April 17, 2008
ECCN EAR99
Country of Origin China, United States of America
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian 350428-1 CAD Model

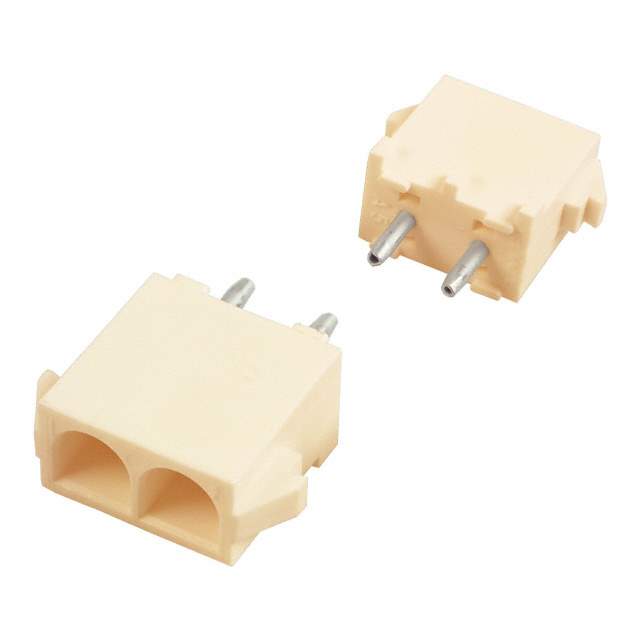

Description

The TE Connectivity AMP Connectors electronic component with Win Source Part Number 766640-350428-1 is a medium popularity product.

  • Series: Universal MATE-N-LOK
  • Positions: Two
  • Mounting Type: Through-hole
  • Connector Type: Header
  • Contact Gender: Male pin
  • Contact Material: Copper alloy
  • Contact Finish: Tin
