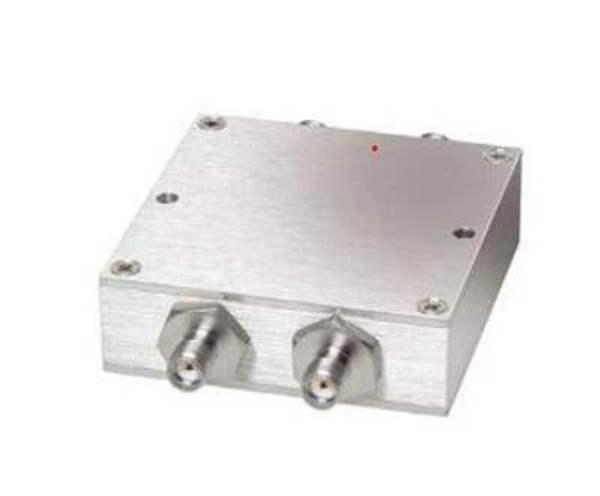

Z4BT-2R15G+ Mini-Circuits
Same model may have multiple batches, images only for reference.

Z4BT-2R15G+

Part No Z4BT-2R15G+
Manufacturer Mini-Circuits
Catalog RF Misc ICs and Modules
Description BIAS TEE / SMA / ROHS
Datasheet
Z4BT-2R15G+ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1203963-Z4BT-2R15G+
Manufacturer Mini-Circuits
Category RF and Wireless- RF Misc ICs and Modules
Package Tray
Product Status Active
Function Bias Tee
Frequency 10MHz ~ 2.15GHz
RF Type General Purpose
Mounting Type Chassis Mount
Package / Case Module, SMA Connectors
Ultra Librarian 3D Model Ultra Librarian Z4BT-2R15G+ CAD Model

Description

The Z4BT-2R15G+ is a combination of bias tee and diplexer designed to support L-Band communications application. Ideally suited for satellite communication installations, the Z4BT-2R15G+ combines wide band, flat response bias tee performance with additional functionality to inject 10 MHz reference clock in a single compact design. Built in a rugged shielded case, the Z4BT-2R15G+ is equipped with SMA Female connectors for all ports. The Z4BT-2R15G+ is ideally suited for powering Satellite up converters and LNBs where IF, DC and 10 MHz clock reference are all injected on a single coax cable.
