Same model may have multiple batches, images only for reference.

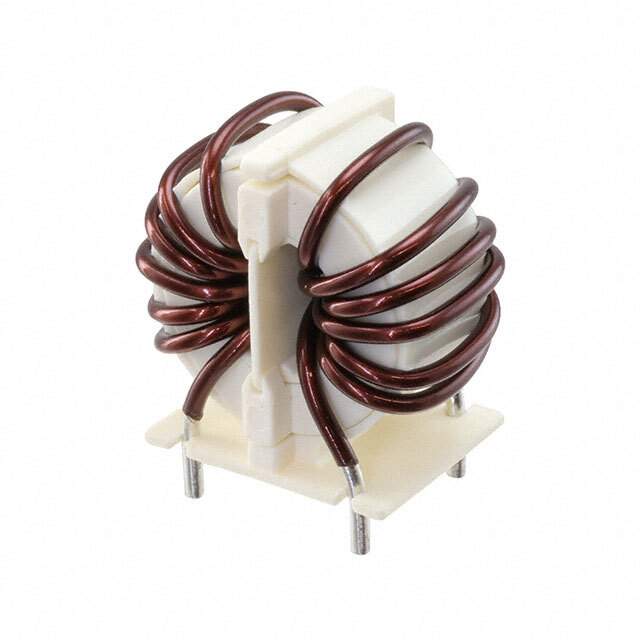

SC-20-01J-A Real Image
Same model may have multiple batches, images only for reference.

SC-20-01J-A

Part No SC-20-01J-A
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SC
Package Tray
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 150 µH @ 1 kHz
Current Rating (Max) 20A
DC Resistance (DCR) (Max) 4mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating 25°C ~ 120°C
Mounting Type Through Hole
Dimension 1.378" L x 0.945" W (35.00mm x 24.00mm)
Height (Max) 1.339" (34.00mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SC-20
Other Names 399-SC-20-01J-A,UALSC2001JA000
Standard Package 200
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276992-SC-20-01J-A
Ultra Librarian 3D Model Ultra Librarian SC-20-01J-A CAD Model

Description

The KEMET 1046723 is a common mode choke that belongs to the Filters>Common Mode Chokes category.

  • Package Type: Tray
  • Voltage Rating (AC) and (DC): 250V
  • Current Rating (Max): 20A
  • Standard Package: 200
  • Filter Type: Power line
  • Lines: Two lines
  • Inductance @ frequency: 150 µH @ 1 kHz
  • DC Resistance (DCR) (Max): 4mOhm
  • Mounting Type: Through hole
  • Package/Case: Vertical, 4 PC Pin
  • Operating Temperature: 25°C ~ 120°C
  • Dimension: 1.378" L x 0.945" W (35.00mm x 24.00mm)
  • Win Source Part Number: 1276992-SC-20-01J-A
