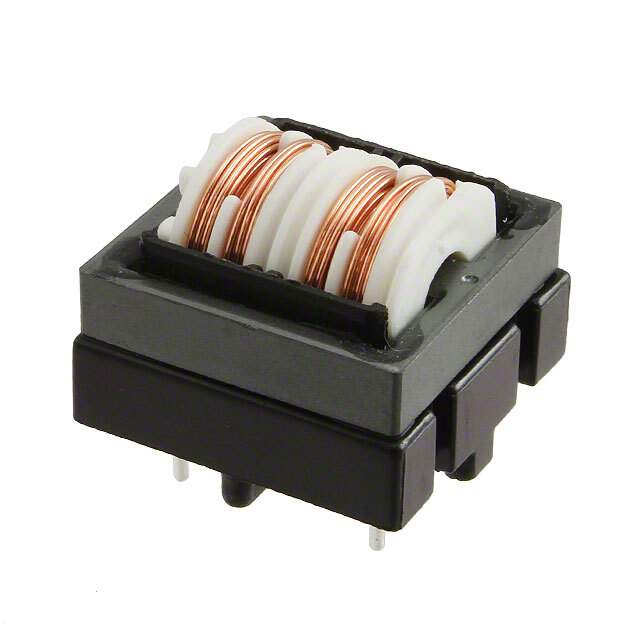

SS20H-20018 Real Image
Same model may have multiple batches, images only for reference.

SS20H-20018

Part No SS20H-20018
Manufacturer Kemet
Catalog Common Mode Chokes
Description CMC 1.8MH 2A 2LN TH / 1.8 mH @ 1 kHz 2 Line Common Mode Choke Through Hole 2A DCR 110mOhm
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SS
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 1.8 mH @ 1 kHz
Current Rating (Max) 2A
DC Resistance (DCR) (Max) 110mOhm
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 0.866" L x 0.866" W (22.00mm x 22.00mm)
Height (Max) 0.728" (18.50mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SS20H
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4065
Other Names 399-10679,399-10679-ND,399-SS20H-20018,UAL20H20018000
Standard Package 800
Win Source Part Number 1232546-SS20H-20018
Ultra Librarian 3D Model Ultra Librarian SS20H-20018 CAD Model

Description

The KEMET SS series common mode choke is a power line filter type component that is designed for use in applications where voltage rating - AC is up to 250V.

  • Maximum Current: 2A
  • Mounting Type: Through-Hole
  • DC Resistance (DCR): Up to 110mOhm
  • Inductance: 1.8 mH @ 1 kHz
  • Dimensions: 0.866" L x 0.866" W (22.00mm x 22.00mm)
  • Height: 0.728" (18.50mm)
  • Packaging: Bulk
  • Standard Package: 800
