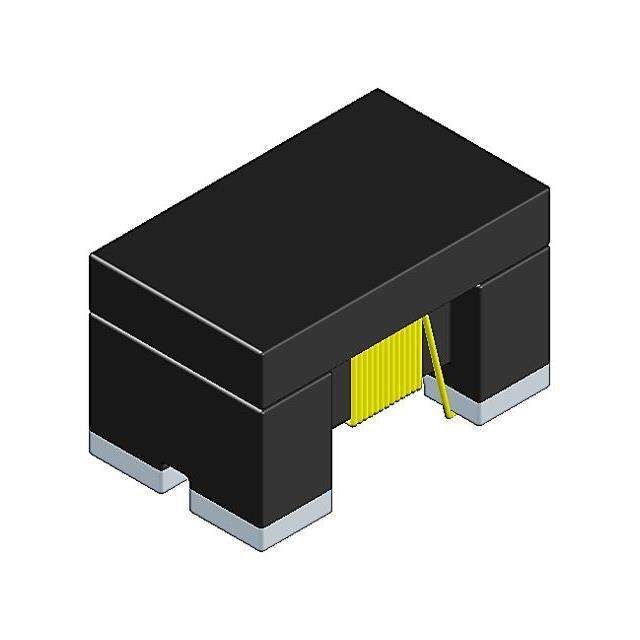

ACM 4532F2NV-101T02-D Real Image1 ACM 4532F2NV-101T02-D Real Image2
Same model may have multiple batches, images only for reference.
ACM 4532F2NV-101T02-D Real Image1 ACM 4532F2NV-101T02-D Real Image2
ACM 4532F2NV-101T02-D Real Image1 ACM 4532F2NV-101T02-D Real Image2
Same model may have multiple batches, images only for reference.

ACM 4532F2NV-101T02-D

Part No ACM 4532F2NV-101T02-D
Manufacturer TAI-TECH Advanced Electronics
Catalog Common Mode Chokes
Description 100 UH @ 100 KHZ 2 LINE COMMON M / 100 µH @ 100 kHz 2 Line Common Mode Choke Surface Mount 100mA DCR
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr TAI-TECH Advanced Electronics
Series ACM4532F2NV
Package Tape & Reel
Filter Type Signal Line
Number of Lines 2
Inductance @ Frequency 100 µH @ 100 kHz
Current Rating (Max) 100mA
DC Resistance (DCR) (Max) -
Voltage Rating - DC 50V
Voltage Rating - AC -
Temperature Range - Operating -55°C ~ 150°C
Ratings AEC-Q200
Approval Agency -
Features -
Mounting Type Surface Mount
Size / Dimension 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height (Max) 0.118" (3.00mm)
Package / Case Horizontal, 4 PC Pad
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Standard Package 500 pcs
Win Source Part Number 1381308-ACM 4532F2NV-101T02-D
Ultra Librarian 3D Model Ultra Librarian ACM 4532F2NV-101T02-D CAD Model

Description

The TAI-TECH Advanced Electronics Common Mode Choke is a high-quality filter designed for signal line applications.

  • Size: 0.177" L x 0.126" W (4.50mm x 3.20mm)
  • Voltage Rating: 50V
  • Current Rating: 100mA
  • Height: 0.118" (3.00mm)
  • Number of Lines: 2
  • Mounting Type: Surface Mount
  • AEC-Q200: Yes
  • Inductance: 100 µH @ 100 kHz
  • Moisture Sensitivity Level: 1 (Unlimited)
