Same model may have multiple batches, images only for reference.

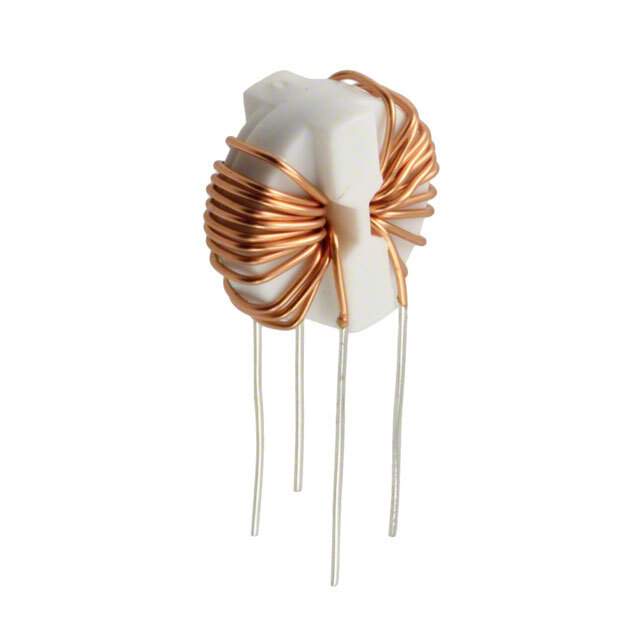

SC-03-05GS Real Image
Same model may have multiple batches, images only for reference.

SC-03-05GS

Part No SC-03-05GS
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SC
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 500 µH @ 100 kHz
Current Rating (Max) 3A
DC Resistance (DCR) (Max) 45mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 105°C
Mounting Type Through Hole
Dimension 0.591" Dia x 0.335" W (15.00mm x 8.50mm)
Height (Max) 0.591" (15.00mm)
Package / Case Vertical, No Base, 4 PC Pin
Base Product Number SC-03
Other Names UALSC0305GS000,399-10646
Standard Package 3,000
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4065
Win Source Part Number 1277036-SC-03-05GS
Ultra Librarian 3D Model Ultra Librarian SC-03-05GS CAD Model

Description

The KEMET SC-03-05GS is a common mode choke filter designed for power line applications. The KEMET SC-03-05GS is a reliable and efficient filter that can be used in various electronic applications.

  • Voltage Rating: 250V AC and DC
  • Maximum Current Rating: 3A
  • Inductance: 500μH @ a frequency of 100kHz
  • Mounting Type: Through-hole
  • Package: Vertical, no base, 4 PC pin package
  • Temperature Range: from -25°C to 105°C
