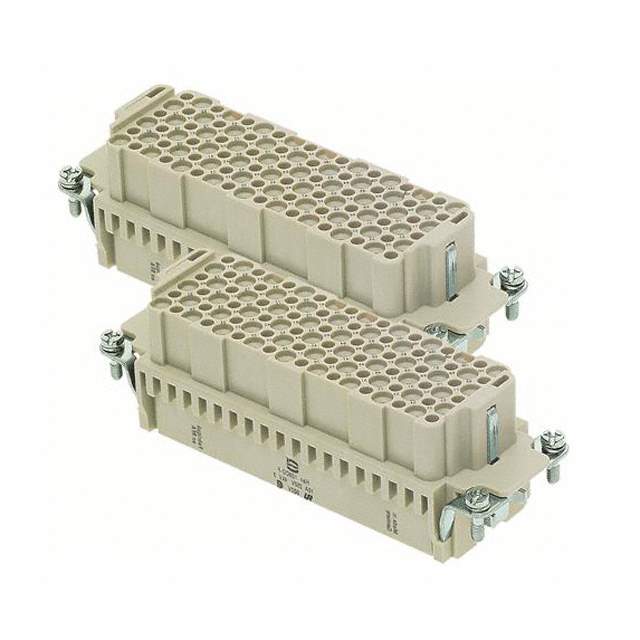

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Heavy Duty Connectors - Heavy Duty Connector Inserts, Modules
Mfr HARTING
Series Han® DD
Package Bulk
Connector Type Insert without Contacts
Gender Female
Number of Positions 108+Ground
Size 24B
Termination Style Crimp
Voltage Rating 600V
Current Rating (Amps) 10A
Contact Type Han® D
Temperature Range - Operating -40°C ~ 125°C
Color Gray
Housing Material Polycarbonate (PC)
Material Flammability Rating UL94 V-0
Base Product Number 09161083
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.8000
Win Source Part Number 1351792-09161083101
Ultra Librarian 3D Model Ultra Librarian 09161083101 CAD Model

Description

The HARTING heavy-duty connector insert module is a female connector manufactured by HARTING.

  • Color: Gray
  • Number of Positions: 108+Ground
  • Termination Style: Crimp
  • Contact Type: Han® D
  • Packaging: Bulk
  • Voltage Rating: 600V
  • Housing Material: Polycarbonate (PC)
  • Material Flammability Rating: UL94 V-0
  • Size: 24B
  • Operating Temperature: -40°C to 125°C
  • REACH Status: REACH Unaffected

You May Also Be Interested in

09000005342 Real Image1
09000005342
HARTING
CLAMP FOR 10MM CABLE DIA GRND TE / Connector Clamp
Lowest to $7.3632
ECAD model for 09000005342
09380323001 Real Image
09380323001
HARTING
INSERT MALE 8+24POS+1GND CRIMP / Male Insert without Contacts Gray 8+24+Ground Position Crimp
Need more? Email Us
ECAD model for 09380323001
19620031440 Real Image1
19620031440
HARTING
CONN HOOD TOP ENTRY SZ3A M20 / Hood Connector Top Entry M20 3A IP44
Lowest to $10.9083
ECAD model for 19620031440
09628060391 Real Image
09628060391
HARTING
HAN HIGH TEMP 6B LOW 1LEVER / Base - Panel Mount Connector Bottom Entry 6B IP65 - Dust Tight, Water Resistant
Need more? Email Us
ECAD model for 09628060391

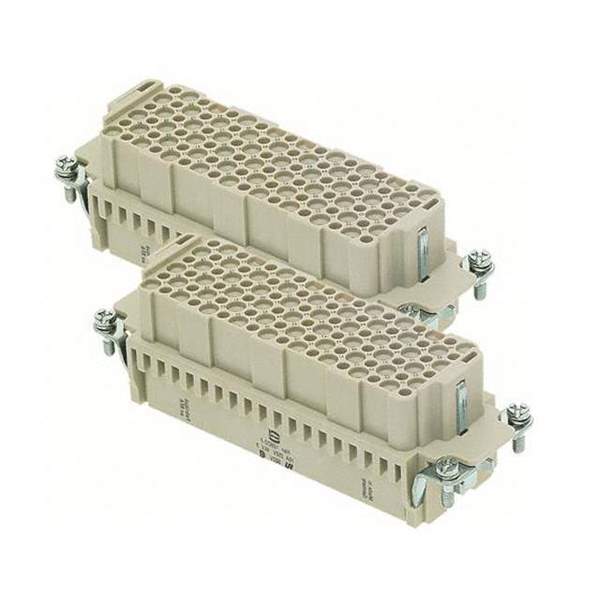

09161083101 Real Image
