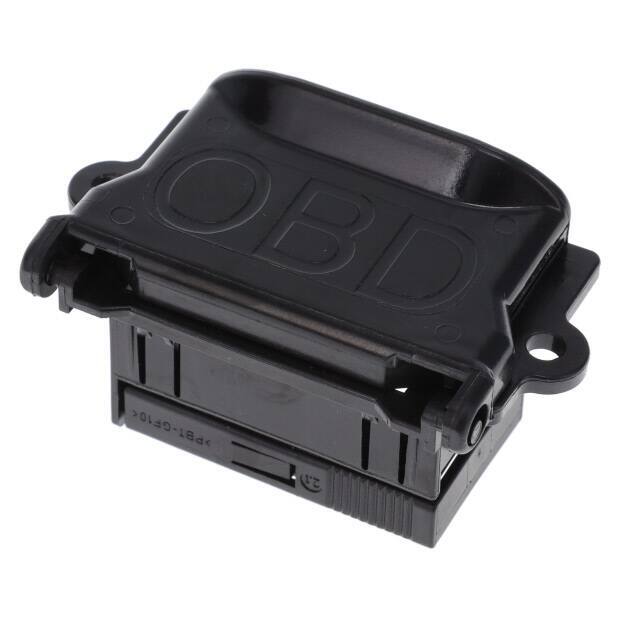

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Accessories
Mfr TE Connectivity Deutsch Connectors
Series Micro Timer III
Package Box
Product Status Active
Accessory Type Frame
Number of Positions 16
For Use With/Related Products -
Features Cable Clamp
Base Product Number 1418985
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.8180
Win Source Part Number 1364240-1418985-2
Ultra Librarian 3D Model Ultra Librarian 1418985-2 CAD Model

Description

The TE Connectivity Deutsch Connectors Micro Timer III is a rectangular connector accessory designed for use with related products in the Micro Timer III series.

  • Series: Micro Timer III
  • Feature: Cable Clamp
  • Positions: 16
  • Type: Frame
  • Status: Active
  • REACH: Unaffected
  • ECCN: EAR99
  • HTSUS: 8538.90.8180
  • MSL: 1
