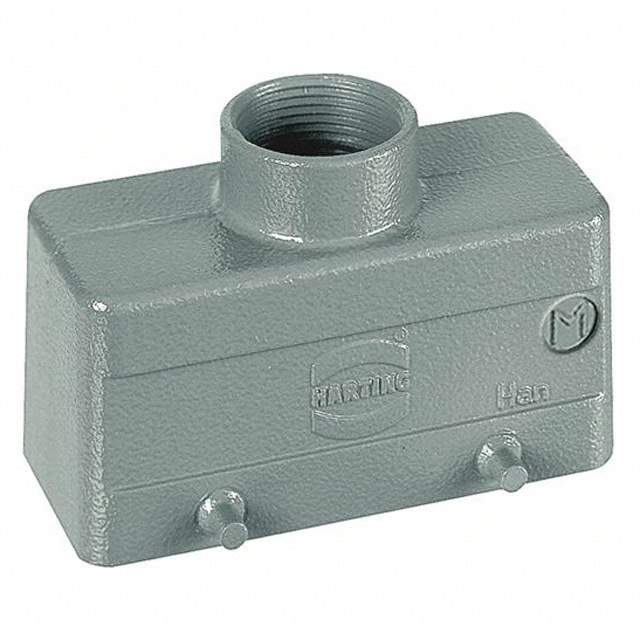

19300161421 Real Image1 19300161421 Real Image2
Same model may have multiple batches, images only for reference.
19300161421 Real Image1 19300161421 Real Image2
19300161421 Real Image1 19300161421 Real Image2
Same model may have multiple batches, images only for reference.

19300161421

Part No 19300161421
Manufacturer HARTING
Catalog Heavy Duty Connectors
Description CONN HOOD TOP ENTRY SZ16B M25 / Hood Connector Top Entry M25 16B IP65 - Dust Tight, Water Resistant
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Heavy Duty Connectors>Heavy Duty Connector Housings, Hoods, Bases
Mfr HARTING
Series Han® B
Package Bulk
Connector Type Hood
Style Top Entry
Size 16B
Lock Location Locking Clip (2) on Base Bottom
Thread Size M25
Size / Dimension 3.681" L x 1.693" W x 2.402" H (93.50mm x 43.00mm x 61.00mm)
Housing Color Gray
Features -
Ingress Protection IP65 - Dust Tight, Water Resistant
Housing Material Aluminum, Die Cast
Housing Finish Powder Coated
Temperature Range - Operating -40°C ~ 125°C
Base Product Number 19300161
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.8180
Standard Package 1 pcs
Win Source Part Number 1380598-19300161421
Ultra Librarian 3D Model Ultra Librarian 19300161421 CAD Model

Description

The 1380598-19300161421 is a hood connector from HARTING's Han® B series.

  • Entry Style: Top entry
  • Ingress Protection: IP65
  • Housing Material: Aluminum die cast
  • Color: Gray
  • Size Dimensions: 3.681" L x 1.693" W x 2.402" H (93.50mm x 43.00mm x 61.00mm)
  • Size: 16B
  • Thread Size: M25
  • Operating Temperature: -40°C to 125°C
  • Housing Finish: Powder coated
  • ECCN: EAR99
  • Moisture Sensitivity Level: 1 (unlimited)
