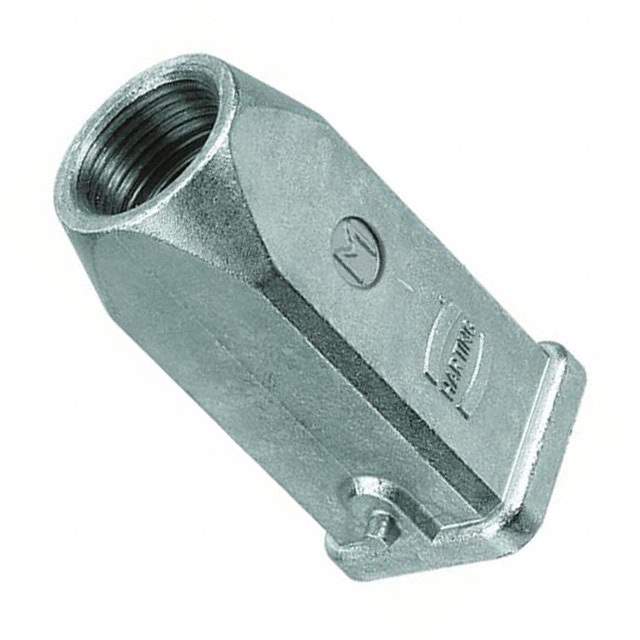

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Heavy Duty Connectors>Heavy Duty Connector Housings, Hoods, Bases
Mfr HARTING
Series Han® EMC
Package Bulk
Connector Type Hood
Style Top Entry
Size 3A
Lock Location Locking Clip (1) on Base Bottom
Thread Size M20
Size / Dimension 1.063" L x 1.102" W x 2.362" H (27.00mm x 28.00mm x 60.00mm)
Housing Color -
Features -
Ingress Protection IP44
Housing Material Zinc, Die Cast
Housing Finish EMC Coating
Temperature Range - Operating -40°C ~ 125°C
Base Product Number 19620031
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.8180
Standard Package 10 pcs
Win Source Part Number 1380607-19620031440
Ultra Librarian 3D Model Ultra Librarian 19620031440 CAD Model

Description

The 1380607-19620031440 is a heavy-duty connector hood from the Han® EMC series by HARTING.

  • Entry Style: Top Entry
  • Size: 1.063" L x 1.102" W x 2.362" H (27.00mm x 28.00mm x 60.00mm)
  • Housing Material: Zinc Die-Cast
  • Finish: EMC Coating
  • Ingress Protection: IP44
  • Thread Size: M20
  • Temperature Range: -40°C to 125°C
