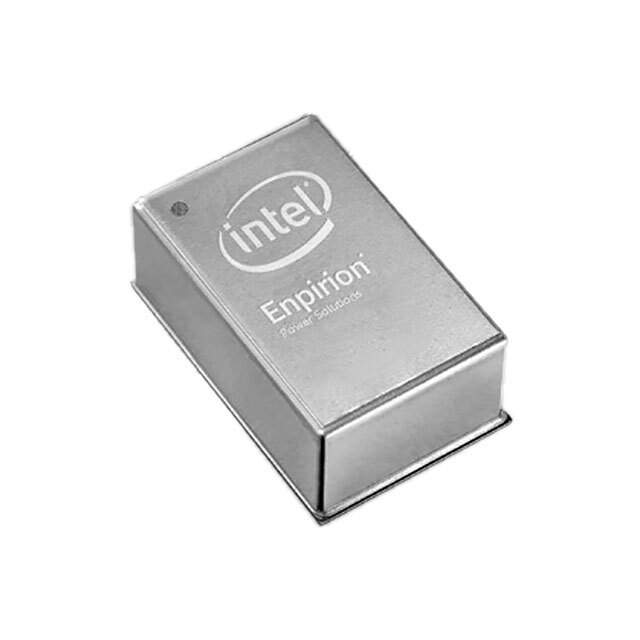

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Intel
Series Enpirion® 2040
Package Tray
Product Status Obsolete
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 16V
Voltage - Output 1 0.5 ~ 1.3V
Current - Output (Max) 40A
Applications ITE (Commercial)
Features Adjustable Output, Remote Sense
Temperature Range - Operating -40°C ~ 85°C
Efficiency 90%
Mounting SMD (SMT)
Package / Case 104-PowerBQFN Module
Dimension 0.67" L x 0.43" W x 0.27" H (17.0mm x 11.0mm x 6.8mm)
Base Product Number EM2040
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Names 544-EM2040N01QI
Standard Package 112
Win Source Part Number 1001285-EM2040N01QI
Ultra Librarian 3D Model Ultra Librarian EM2040N01QI CAD Model

Description

The Intel 1001285-EM2040N01QI is a non-isolated PoL module that falls under the category of power supplies - board mount>DC DC converters. It has an adjustable output and remote sense features.

  • Output Type: Adjustable
  • Features: Remote Sense
  • Efficiency: 90%
  • Maximum Output Current: 40A
  • RoHS Compliant: Yes
  • Temperature Range: -40°C to 85°C
  • Status: Obsolete
