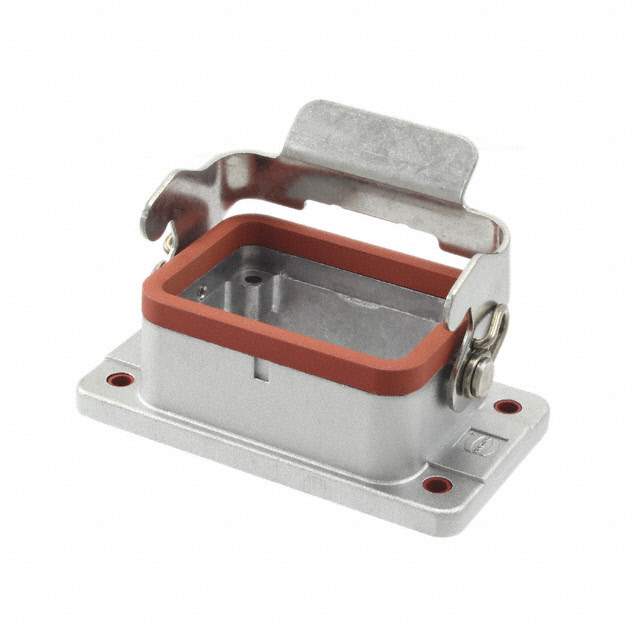

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Heavy Duty Connectors - Heavy Duty Connector Housings, Hoods, Bases
Mfr HARTING
Series Han® High Temp
Package Bulk
Connector Type Base - Panel Mount
Style Bottom Entry
Size 6B
Lock Location Locking Clip (1) on Base Bottom
Size / Dimension 3.346" L x 1.906" W x 1.197" H (85.00mm x 48.40mm x 30.40mm)
Ingress Protection IP65 - Dust Tight, Water Resistant
Housing Material Aluminum, Die Cast
Temperature Range - Operating -40°C ~ 200°C
Base Product Number 09628060
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.8180
Win Source Part Number 1341284-09628060391
Ultra Librarian 3D Model Ultra Librarian 09628060391 CAD Model

Description

The HARTING Han® High Temp series connector type base, with a panel mount style, is a heavy-duty connector housing, hood, and base.

  • Connector Type: Base
  • Series: Han® High Temp
  • Mounting Style: Panel Mount
  • Housing Material: Aluminum, Die Cast
  • Size / Dimension: 3.346" L x 1.906" W x 1.197" H (85.00mm x 48.40mm x 30.40mm)
  • Housing Color: Not Specified
  • Ingress Protection: IP65
  • Entry Style: Bottom
  • Size: 6B
  • Operating Temperature: -40°C ~ 200°C
  • Locking Clip: (1) Base Bottom
