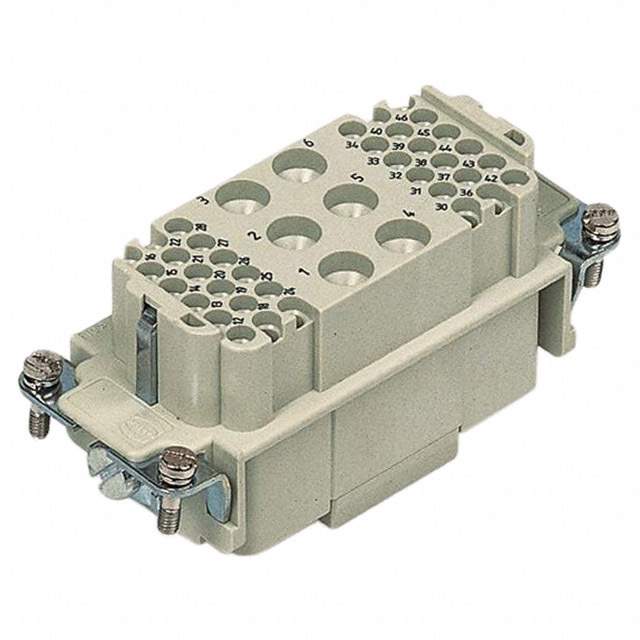

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Heavy Duty Connectors>Heavy Duty Connector Inserts, Modules
Mfr HARTING
Series Han-Com®
Package Bulk
Connector Type Insert without Contacts
Gender Female
Number of Positions 6+36+Ground
Size 16B
Termination Style Crimp
Voltage Rating -
Current Rating (Amps) -
Contact Type Han® C, Han® D
Temperature Range - Operating -40°C ~ 125°C
Color Gray
Housing Material Polycarbonate (PC)
Contact Material -
Contact Finish -
Material Flammability Rating UL94 V-0
Base Product Number 09380423
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.8000
Standard Package 1 pcs
Win Source Part Number 1380454-09380423101
Ultra Librarian 3D Model Ultra Librarian 09380423101 CAD Model

Description

The HARTING Han-Com® connector inserts in the Han-Com® series are versatile and reliable electronic components.

  • Series: Han-Com®
  • Number of Positions: 6+36+Ground
  • Termination Style: Crimp
  • Color: Gray
  • Housing Material: Polycarbonate (PC)
  • Flammability Rating: UL94 V-0
  • Operating Temperature: -40°C ~ 125°C
  • Packaging: Bulk
  • Manufacturer: HARTING
