Same model may have multiple batches, images only for reference.

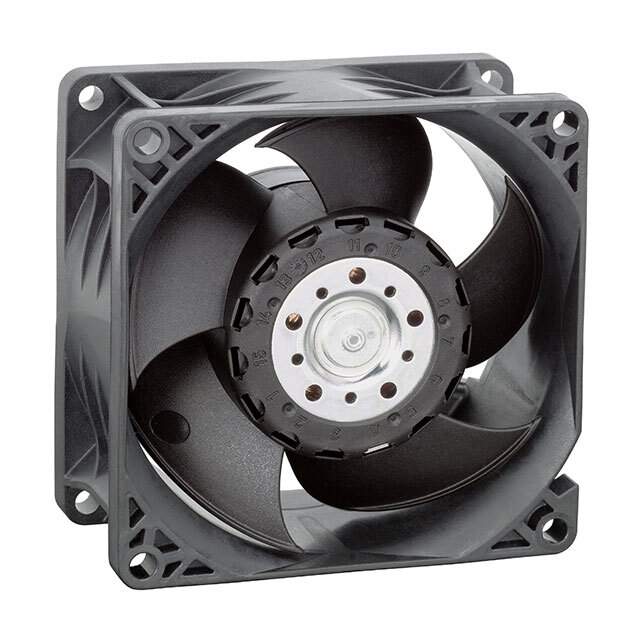

8214JH4 Real Image
Same model may have multiple batches, images only for reference.

8214JH4

Part No 8214JH4
Manufacturer ebm-papst
Catalog Fans, Thermal Management
Description FAN AXIAL 80X38MM 24VDC WIRE / Fan Tubeaxial 24VDC Square - 80mm L x 80mm H Ball 131.0 CFM (3.67m³/min) 2 Wire Leads
Datasheet
8214JH4 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management - Fans - DC Brushless Fans (BLDC)
Mfr ebm-papst Inc.
Series 8200J
Package Box
Voltage - Rated 24VDC
Size / Dimension Square - 80mm L x 80mm H
Width 38.00mm
Air Flow 131.0 CFM (3.67m³/min)
Bearing Type Ball
Fan Type Tubeaxial
Noise 71.0dB(A)
Power (Watts) 38 W
RPM 14000 RPM
Termination 2 Wire Leads
Temperature Range - Operating -4 ~ 158°F (-20 ~ 70°C)
Weight 0.441 lb (200.03 g)
Voltage Range 12 ~ 27.6VDC
Material - Frame Polybutylene Terephthalate (PBT) , Fiberglass Reinforced
Material - Blade Polyamide (PA) , Nylon, Fiberglass Reinforced
Lifetime @ Temp. 50000 Hrs @ 40°C
Base Product Number 8214J
Standard Package 25
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8414.59.6590
Win Source Part Number 1339471-8214JH4
Ultra Librarian 3D Model Ultra Librarian 8214JH4 CAD Model

Description

The 1339471-8214JH4 is a DC Brushless Fan (BLDC) belonging to the 8200J series of fans manufactured by ebm-papst Inc.

  • Voltage Range: 12 ~ 27.6VDC
  • Rated Voltage: 24VDC
  • Power Consumption: 38W
  • Noise Level: 71.0dB(A)
  • Size: 80mm L x 80mm H
  • Width: 38.00mm
  • Air Flow: 131.0 CFM (3.67m³/min)
  • Lifetime: 50000 Hrs @ 40°C
  • Win Source Part Number: 1339471-8214JH4
