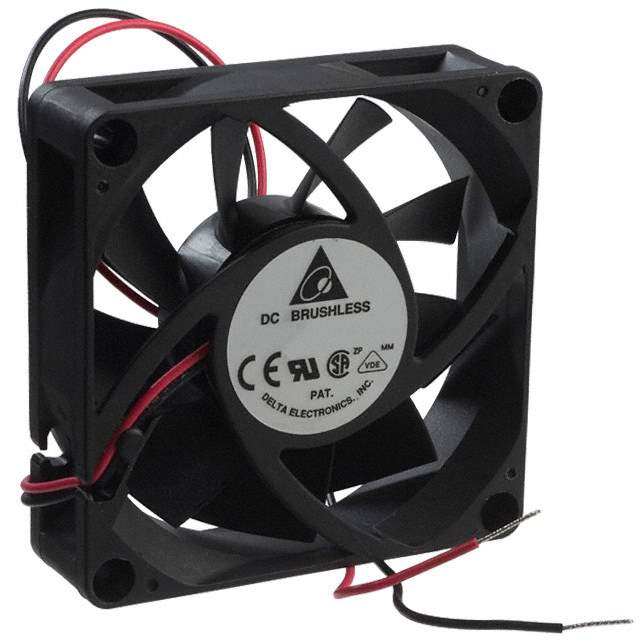

AFB0712VHB Real Image
Same model may have multiple batches, images only for reference.

AFB0712VHB

Part No AFB0712VHB
Manufacturer Delta Electronics
Catalog Fans, Thermal Management
Description FAN AXIAL 70X15MM 12VDC WIRE / Fan Tubeaxial 12VDC Square - 70mm L x 70mm H Ball 45.5 CFM (1.27m³/min) 2 Wire Leads
Datasheet
AFB0712VHB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management - Fans - DC Brushless Fans (BLDC)
Mfr Delta Electronics
Series AFB
Package Box
Product Status Obsolete
Voltage - Rated 12VDC
Size / Dimension Square - 70mm L x 70mm H
Width 15.00mm
Air Flow 45.5 CFM (1.27m³/min)
Static Pressure 0.306 in H2O (76.4 Pa)
Bearing Type Ball
Fan Type Tubeaxial
Features Locked Rotor Protection
Noise 44.0dB(A)
Power (Watts) 4.44 W
RPM 5200 RPM
Termination 2 Wire Leads
Temperature Range - Operating 14 ~ 158°F (-10 ~ 70°C)
Approval Agency CE, CSA, UL, VDE
Weight 0.116 lb (52.62 g)
Current Rating (Amps) 0.370A
Voltage Range 5 ~ 12.6VDC
Material - Frame Plastic
Material - Blade Plastic
Lifetime @ Temp. 70000 Hrs @ 40°C
Base Product Number AFB0712
Standard Package 224
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8414.59.6590
Win Source Part Number 1340963-AFB0712VHB
Ultra Librarian 3D Model Ultra Librarian AFB0712VHB CAD Model

Description

Delta Electronics AFB0712VHB is a DC brushless fan with a tubeaxial fan type.

  • Shape: Square
  • Size: 70mm L x 70mm H
  • Width: 15.00mm
  • Voltage Range: 5 ~ 12.6VDC
  • Voltage Rating: 12VDC
  • Power: 4.44W
  • Current Rating: 0.370A
  • Maximum RPM: 5200
  • Air Flow: 45.5 CFM (1.27m³/min)
  • Static Pressure: 0.306 in H2O (76.4 Pa)
  • Noise: 44.0dB(A)
  • Lifetime: 70000 Hrs @ 40°C
  • Frame Material: Plastic
  • Blade Material: Plastic
  • Approvals: CE, CSA, UL, VDE
  • Status: Obsolete
