Same model may have multiple batches, images only for reference.

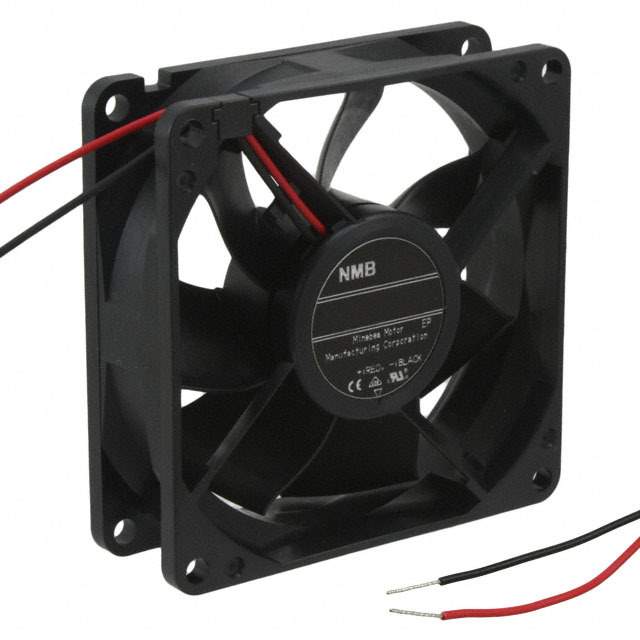

3110SB-05W-B20-E00 Real Image
Same model may have multiple batches, images only for reference.

3110SB-05W-B20-E00

Part No 3110SB-05W-B20-E00
Manufacturer NMB Technologies Corporation
Catalog Fans, Thermal Management
Description FAN AXIAL 80X25MM 24VDC WIRE / Fan Tubeaxial 24VDC Square - 80mm L x 80mm H Ball 26.1 CFM (0.731m³/min) 2 Wire Leads
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management - Fans - DC Brushless Fans (BLDC)
Mfr NMB Technologies Corporation
Series 08025SA
Package Box
Product Status Obsolete
Voltage - Rated 24VDC
Size / Dimension Square - 80mm L x 80mm H
Width 25.00mm
Air Flow 26.1 CFM (0.731m³/min)
Static Pressure 0.066 in H2O (16.6 Pa)
Bearing Type Ball
Fan Type Tubeaxial
Noise 19.0dB(A)
Power (Watts) 720 mW
RPM 2000 RPM
Termination 2 Wire Leads
Temperature Range - Operating 14 ~ 158°F (-10 ~ 70°C)
Approval Agency CE, CSA, UL, VDE
Weight 0.176 lb (79.83 g)
Current Rating (Amps) 0.030A
Voltage Range 12 ~ 27.6VDC
Material - Frame Plastic
Material - Blade Plastic
Lifetime @ Temp. 100000 Hrs @ 25°C
Base Product Number 3110SB
Standard Package 80
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8414.59.6590
Win Source Part Number 1336955-3110SB-05W-B20-E00
Ultra Librarian 3D Model Ultra Librarian 3110SB-05W-B20-E00 CAD Model

Description

The NMB Technologies Corporation 3110SB-05W-B20-E00 is a DC brushless fan designed for thermal management in electronic devices.

  • Manufacturer: NMB Technologies Corporation
  • Size: 80mm L x 80mm H
  • Package: 80
  • Weight: 0.176 lb (79.83 g)
  • Voltage Range: 12 ~ 27.6VDC
  • Voltage - Rated: 24VDC
  • Power: 720 mW
  • Lifetime @ Temp.: 100000 Hrs @ 25°C
  • Air Flow: 26.1 CFM (0.731m³/min)
  • Static Pressure: 0.066 in H2O (16.6 Pa)
  • Noise: 19.0dB(A)
  • RPM: 2000 RPM
  • Operating Temperature: 14 ~ 158°F (-10 ~ 70°C)
  • Material - Frame: Plastic
  • Material - Blade: Plastic
  • Approvals: CE, CSA, UL, VDE
