Same model may have multiple batches, images only for reference.

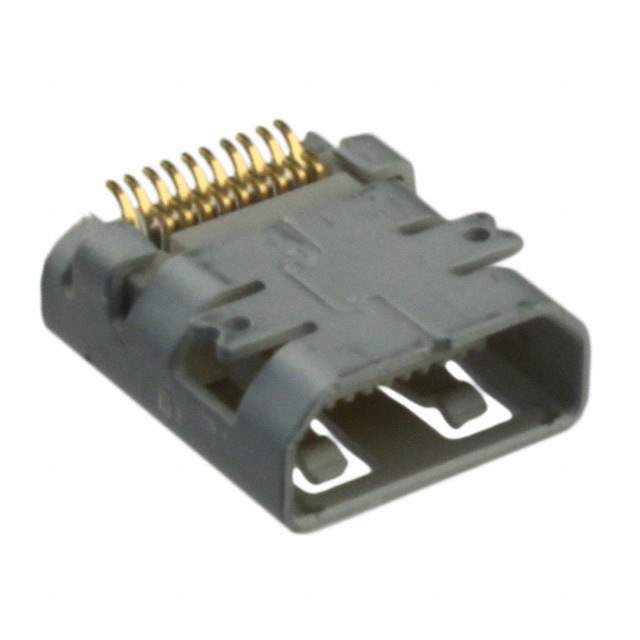

0467650001 Real Image
Same model may have multiple batches, images only for reference.

0467650001

Part No 0467650001
Manufacturer Molex, LLC
Catalog USB, DVI, HDMI Connectors
Description 0.40mm (.016") Pitch HDMI Type D Micro Connector, Right Angle Receptacle, SMT, with Kapton Tape | CONN RCP MICRO HDMI 19POS SMD RA
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex
Packaging Reel
Connector Type HDMI - Micro
Number of Contacts 19
Gender Receptacle
Mounting Style SMT, Right Angle
Mounting Feature Horizontal
Termination Solder
Features Solder Retention
Temperature Range - Operating -30°C ~ 85°C
Number of Ports 1
Current Rating (Amps) 0.8A
Voltage - Rated 30V
Mating Cycles 5000
Shielding Shielded
Contact Finish Gold
Shell/Shielding Material Steel, Stainless
Material Flammability Rating UL94 V-0
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1120675-0467650001
Manufacturer Homepage www.molex.com
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Multimedia
Ultra Librarian 3D Model Ultra Librarian 0467650001 CAD Model

Description

The Molex 1120675-0467650001 is a shielded HDMI-micro connector designed for multimedia applications.

  • Number of Contacts: 19
  • Current Rating: 0.8A
  • Win Source Part Number: 1120675
  • Supply and Demand Status: Limited
