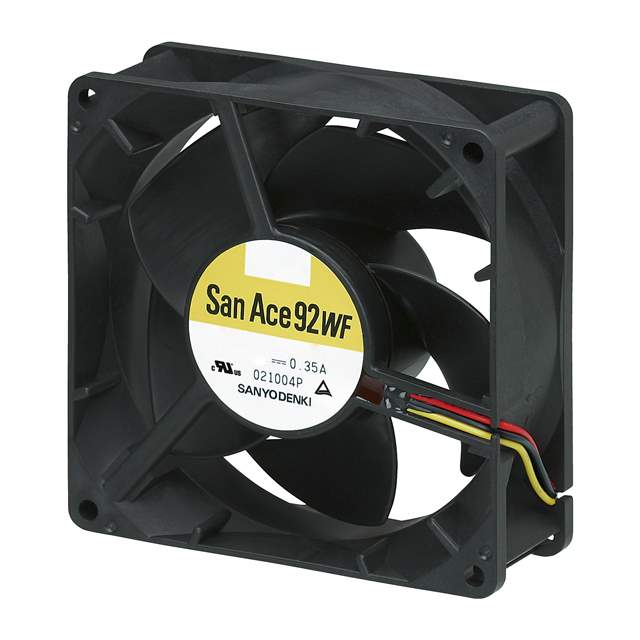

9WF0924H201 Real Image
Same model may have multiple batches, images only for reference.

9WF0924H201

Part No 9WF0924H201
Manufacturer Sanyo Denki America Inc.
Catalog Fans, Thermal Management
Description FAN AXIAL 92X32MM 24VDC WIRE / Fan Tubeaxial 24VDC Square - 92mm L x 92mm H Ball 86.5 CFM (2.42m³/min) 3 Wire Leads
Datasheet
9WF0924H201 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management - Fans - DC Brushless Fans (BLDC)
Mfr Sanyo Denki America Inc.
Series San Ace 92WF
Package Box
Voltage - Rated 24VDC
Size / Dimension Square - 92mm L x 92mm H
Width 32.00mm
Air Flow 86.5 CFM (2.42m³/min)
Static Pressure 0.800 in H2O (199.3 Pa)
Bearing Type Ball
Fan Type Tubeaxial
Features Speed Sensor (Tach)
Noise 56.0dB(A)
Power (Watts) 8.4 W
RPM 6500 RPM
Termination 3 Wire Leads
Ingress Protection Oil Resistant
Temperature Range - Operating -4 ~ 158°F (-20 ~ 70°C)
Approval Agency CSA, TUV, UL
Weight 0.408 lb (185.07 g)
Current Rating (Amps) 0.350A
Voltage Range 20.4 ~ 27.6VDC
Material - Frame Plastic
Material - Blade Plastic
Lifetime @ Temp. 40000 Hrs @ 60°C
Base Product Number 9WF0924
Standard Package 32
MSL Level Not Applicable
ECCN EAR99
HTSUS 8414.59.6590
Win Source Part Number 1339090-9WF0924H201
Ultra Librarian 3D Model Ultra Librarian 9WF0924H201 CAD Model

Description

The Sanyo Denki America Inc. San Ace 92WF is a DC brushless fan component that features speed sensor (Tach) and 3 wire leads.

  • Features: speed sensor (Tach), 3 wire leads
  • Shape: square
  • Dimensions: 92mm L x 92mm H
  • Voltage Rating: 24VDC
  • Power Rating: 8.4W
  • Lifetime: 40,000 hrs @ 60°C
  • Weight: 0.408 lb (185.07 g)
