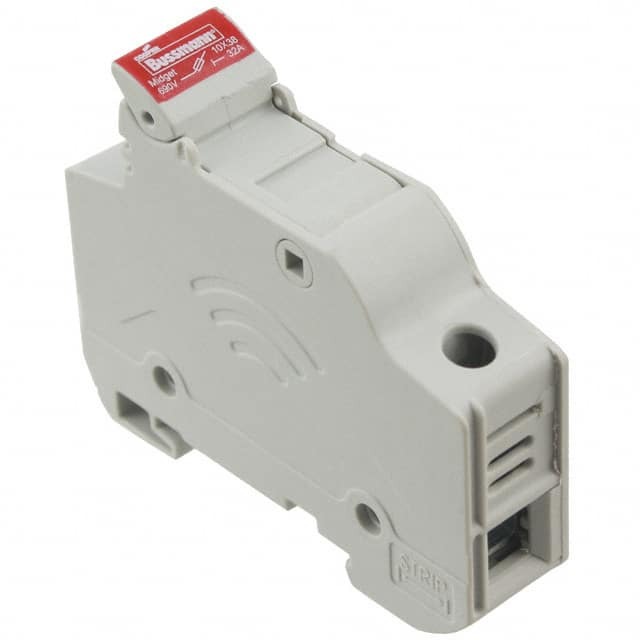

CHM1DU
Same model may have multiple batches, images only for reference.

CHM1DU

Part No CHM1DU
Manufacturer Eaton Bussmann
Catalog Fuseholders
Description FUSE HLDR CART 600V 30A DIN RAIL
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Fuseholders
Mfr Eaton Bussmann
Series CH
Package Bulk
Product Status Active
Mounting Type DIN Rail
Fuse Size 0.394" Dia x 1.496" L (10mm x 38mm)
Current Rating (Amps) 30 A
For Use With/Related Products 5AG, 13/32" x 1-1/2" (Midget)
Fuse Type Cartridge
Fuseholder Type Holder
Number of Circuits 1
Voltage 600V
Termination Style Screw Terminal
Standard Package 12 pcs
MSL Level Not Applicable
ECCN EAR99
HTSUS 8538.90.8180
Win Source Part Number 915331-CHM1DU
Ultra Librarian 3D Model Ultra Librarian CHM1DU CAD Model

Description

The CH series circuit protection fuseholder is a reliable and efficient solution for protecting electronic components.

  • Voltage Rating: 600V
  • Current Rating: 30A
  • Termination Style: screw terminal
  • Package: bulk
  • Fuse Type: 5AG, 13/32" x 1-1/2" (Midget)
  • Size: 0.394" diameter x 1.496" length (10mm x 38mm)
  • Mounting: DIN rails
  • Manufacturer: Eaton Bussmann
  • Status: active
  • Standard Package: 12 pieces
