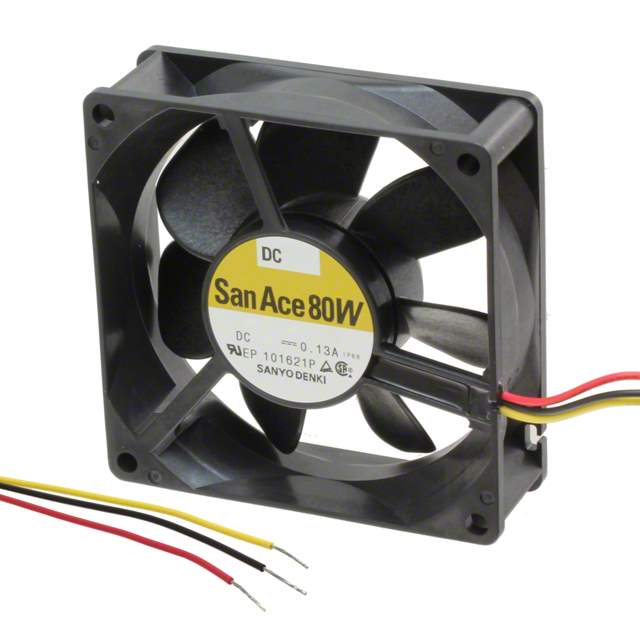

9WL0812P4J001 Real Image
Same model may have multiple batches, images only for reference.

9WL0812P4J001

Part No 9WL0812P4J001
Manufacturer Sanyo Denki America Inc.
Catalog Fans, Thermal Management
Description FAN AXIAL 80X25MM 12VDC WIRE / Fan Tubeaxial 12VDC Square - 80mm L x 80mm H Ball 73.0 CFM (2.04m³/min) 4 Wire Leads
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management - Fans - DC Brushless Fans (BLDC)
Mfr Sanyo Denki America Inc.
Series San Ace 80W
Package Box
Voltage - Rated 12VDC
Size / Dimension Square - 80mm L x 80mm H
Width 25.00mm
Air Flow 73.0 CFM (2.04m³/min)
Static Pressure 0.710 in H2O (176.9 Pa)
Bearing Type Ball
Fan Type Tubeaxial
Features PWM Control, Speed Sensor (Tach)
Noise 49.0dB(A)
Power (Watts) 7.2 W
RPM 7400 RPM
Termination 4 Wire Leads
Ingress Protection IP68 - Dust Tight, Waterproof
Temperature Range - Operating -4 ~ 158°F (-20 ~ 70°C)
Approval Agency CSA, TUV, UL
Weight 0.331 lb (150.14 g)
Current Rating (Amps) 0.600A
Voltage Range 10.8 ~ 13.2VDC
Material - Frame Aluminum
Material - Blade Plastic
Lifetime @ Temp. 180000 Hrs @ 60°C
Base Product Number 9WL0812
Standard Package 40
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8414.59.6590
Win Source Part Number 1337220-9WL0812P4J001
Ultra Librarian 3D Model Ultra Librarian 9WL0812P4J001 CAD Model

Description

The Sanyo Denki America Inc. San Ace 80W is a DC brushless fan component that features PWM control, speed sensor (Tach), and 4 wire leads.

  • Voltage - Rated: 12VDC
  • Size / Dimension: Square - 80mm L x 80mm H
  • Width: 38.00mm
  • Air Flow: -
  • Static Pressure: -
  • Bearing Type: Ball
  • Fan Type: Tubeaxial
  • Features: PWM Control, Speed Sensor (Tach)
  • Power (Watts): 7.2W
  • RPM: -
  • Noise: -
  • Operating Temperature: -
  • Lifetime @ Temp.: 180,000 Hrs @ 60°C
  • Termination: 4 Wire Leads
  • Ingress Protection: -
  • Weight: 0.331 lb (150.14 g)
