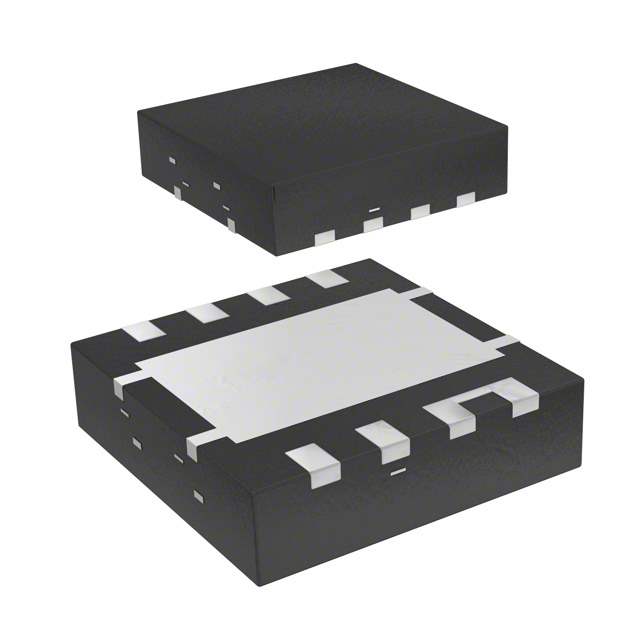

The Texas Instruments CSD86356Q5DT is a state-of-the-art, high-efficiency, synchronous buck NexFET™ power block designed for multi-purpose applications. This advanced semiconductor combines two power MOSFETs in a unique SON 5mm x 6mm package, offering designers a compact, high-performance solution for power conversion.

Key Features

• High-Density Power Solution: The CSD86356Q5DT integrates two MOSFETs into a small footprint, providing a high-density power solution that minimizes space on the PCB.
• Optimized Performance: With an optimized design for 5V gate drive applications, this power block achieves a balance between conduction and switching losses, ensuring efficient operation.
• Low R<sub>DS(on): The device features low on-resistance, which translates to reduced power loss and improved thermal performance, critical for maintaining efficiency in power-sensitive designs.
• High Continuous Current Capability: It is capable of delivering high continuous current, making it suitable for demanding applications that require a reliable power supply.
• Thermal Excellence: The CSD86356Q5DT boasts an exceptional thermal performance due to its Power Block construction, ensuring stability and longevity under various operating conditions.

Applications

Designed to cater to a wide range of applications, the CSD86356Q5DT is ideal for use in DC/DC conversion in computing, server, telecom, and networking equipment. Its versatility also extends to industrial and automotive systems, where efficient power conversion is paramount.

Quality and Reliability

Texas Instruments is renowned for its commitment to quality and reliability, and the CSD86356Q5DT is no exception. It is designed to meet the stringent requirements of the industrial market, ensuring long-term reliability for products that cannot afford to fail.

Environmental Compliance

Complying with RoHS directives, the CSD86356Q5DT is manufactured with the environment in mind. It is free from hazardous substances, making it a responsible choice for designers looking to create eco-friendly products.
