Same model may have multiple batches, images only for reference.

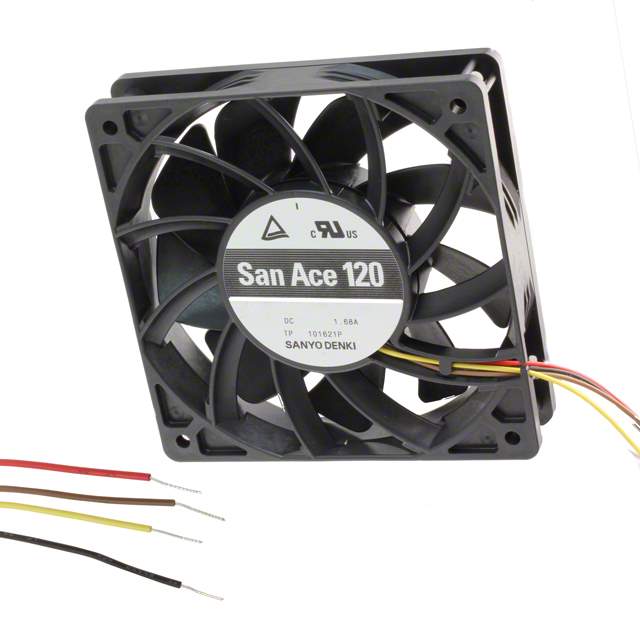

9GV1224P1J01 Real Image
Same model may have multiple batches, images only for reference.

9GV1224P1J01

Part No 9GV1224P1J01
Manufacturer Sanyo Denki America Inc.
Catalog Fans, Thermal Management
Description FAN AXIAL 119X38MM 24VDC WIRE / Fan Tubeaxial 24VDC Square - 119mm L x 119mm H Ball 224.0 CFM (6.27m³/min) 4 Wire Leads
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management - Fans - DC Brushless Fans (BLDC)
Mfr Sanyo Denki America Inc.
Series San Ace 120
Package Box
Voltage - Rated 24VDC
Size / Dimension Square - 119mm L x 119mm H
Width 38.00mm
Air Flow 224.0 CFM (6.27m³/min)
Static Pressure 1.450 in H2O (361.2 Pa)
Bearing Type Ball
Fan Type Tubeaxial
Features PWM Control, Speed Sensor (Tach)
Noise 64.0dB(A)
Power (Watts) 36 W
RPM 6400 RPM
Termination 4 Wire Leads
Temperature Range - Operating -4 ~ 158°F (-20 ~ 70°C)
Approval Agency CSA, TUV, UL
Weight 0.794 lb (360.15 g)
Current Rating (Amps) 1.50A
Voltage Range 20.4 ~ 27.6VDC
Material - Frame Plastic
Material - Blade Plastic
Lifetime @ Temp. 40000 Hrs @ 60°C
Base Product Number 9GV1224
Standard Package 21
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8414.59.6590
Win Source Part Number 1338234-9GV1224P1J01
Ultra Librarian 3D Model Ultra Librarian 9GV1224P1J01 CAD Model

Description

The San Ace 120 series of DC brushless fans (BLDC) from Sanyo Denki America Inc. is a high-performance cooling solution for electronic equipment.

  • Voltage Rating: 24VDC
  • Power Consumption: 36 Watts
  • Noise Level: 64.0dB(A)
  • Size: 119mm L x 119mm H
  • Weight: 0.794 lb (360.15 g)
  • Speed: 6400 RPM
  • Air Flow: 224.0 CFM (6.27m³/min)
  • Control Feature: PWM
  • Termination: Four-Wire Lead
  • Frame and Blade Material: Plastic
  • Temperature Range: -4 ~ 158°F (-20 ~ 70°C)
  • Approvals: CSA, TUV, UL
  • ECCN: EAR99
