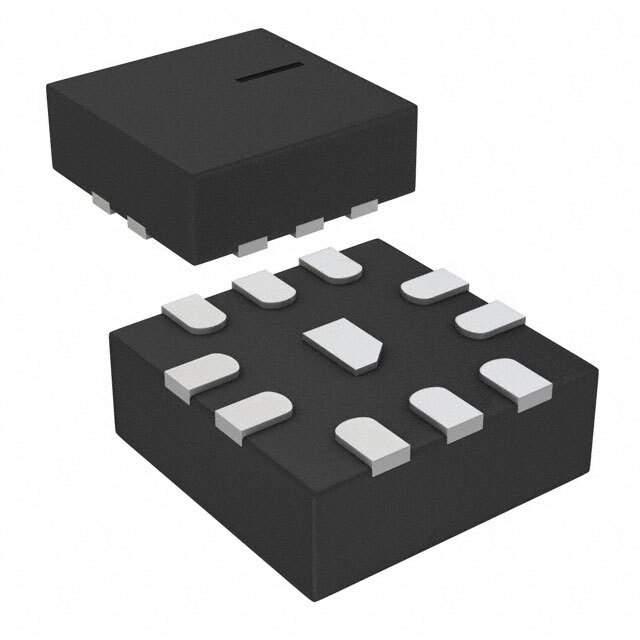

LTC5562IUC#TRPBF

Part No LTC5562IUC#TRPBF
Manufacturer Analog Devices Inc.
Catalog RF Mixers
Description LF-7GHZ LOW-POWER, WIDEBAND ACTI / RF Mixer IC 0Hz ~ 7GHz 10-QFN (2x2)
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Mixers
Mfr Analog Devices Inc.
Package Tape & Reel
Frequency 0Hz ~ 7GHz
Number of Mixers 1
Noise Figure 14.6dB
Current - Supply 40mA
Voltage - Supply 3.3V
Mounting SMD (SMT)
Package / Case 10-WFQFN Exposed Pad
Supplier Device Package 10-QFN (2x2)
Base Product Number LTC5562
Other Names 505-LTC5562IUC#TRPBFCT,505-LTC5562IUC#TRPBFDKR,505-LTC5562IUC#TRPBFTR,LTC5562IUC#TRPBF
Standard Package 2,500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1236105-LTC5562IUC#TRPBF
Ultra Librarian 3D Model Ultra Librarian LTC5562IUC#TRPBF CAD Model

Description

Product Overview: LTC5562IUC#TRPBF from Analog Devices Inc.

The LTC5562IUC#TRPBF is a high-performance, passive double-balanced mixer from Analog Devices Inc., designed to provide exceptional frequency conversion flexibility with a wide frequency range and excellent linearity. This mixer is a part of the LTC5562 series, which is well-suited for modern RF and microwave communication systems.

Key Features

  • Frequency Range: The device supports an extensive RF frequency range from 30MHz to 7GHz, making it versatile for various applications such as wireless infrastructure, RF test equipment, and satellite communications.
  • Conversion Gain: With a conversion gain of 2.4dB, this mixer can help maintain signal integrity and reduce the need for additional amplification stages in the signal chain.
  • Linearity: It offers excellent IIP3 performance of 26.8dBm at 900MHz, ensuring minimal distortion in high-linearity applications.
  • LO Frequency: The local oscillator (LO) frequency range is also broad, covering from 500MHz to 9GHz, which enables the mixer to be used in a wide array of frequency plans.
  • Power Consumption: The LTC5562IUC#TRPBF is optimized for low power consumption, requiring only 3.3V supply voltage and consuming a typical 132mA, making it suitable for battery-powered devices.
  • Package: It is offered in a compact, 16-lead QFN package, which is conducive to space-constrained applications without compromising on performance.

Applications

This mixer is designed for use in a variety of RF applications, including:

  • Wireless infrastructure (such as base stations for mobile communications)
  • Point-to-point and point-to-multipoint microwave links
  • RF and IF stages in high-performance receivers
  • Test and measurement equipment
  • Satellite transponders

Quality and Reliability

Analog Devices Inc. is known for its commitment to quality, and the LTC5562IUC#TRPBF is no exception. It is designed to meet the stringent requirements of industrial and communication applications, ensuring reliable performance in even the most demanding environments.

With its robust feature set and flexible design, the LTC5562IUC#TRPBF from Analog Devices Inc. is an excellent choice for designers looking to implement a high-quality mixer in their RF and microwave systems.
