The LTC5544IUF#TRPBF is a high-performance, passive double-balanced mixer from Analog Devices Inc., designed to provide excellent frequency conversion with a broad operating frequency range. This RF (radio frequency) mixer is a vital component in various applications, including wireless infrastructure, satellite communications, and broadband systems.

Key Features:

• Frequency Range: The device operates over a wide frequency range, making it suitable for multiple RF applications. It supports an RF and LO frequency from 600MHz to 4GHz, and an IF frequency from 5MHz to 1.5GHz, providing versatility for different design requirements.
• High Linearity: With an input IP3 (third-order intercept point) of 24.4dBm at 900MHz, this mixer exhibits high linearity, which is crucial for maintaining signal integrity and reducing distortion in complex RF signal environments.
• Conversion Gain: The LTC5544IUF#TRPBF offers a conversion gain of 2.4dB, which helps to maintain signal strength during the frequency conversion process.
• Low Noise Figure: Featuring a low noise figure of 11.3dB at 900MHz, this mixer ensures a low level of added noise, which is essential for high-performance RF systems.
• Integrated LO Buffer: The device includes an integrated LO buffer, simplifying the design and reducing the number of external components needed for operation.
• Robust Temperature Range: It operates over an industrial temperature range of -40°C to 105°C, making it reliable for use in harsh environmental conditions.

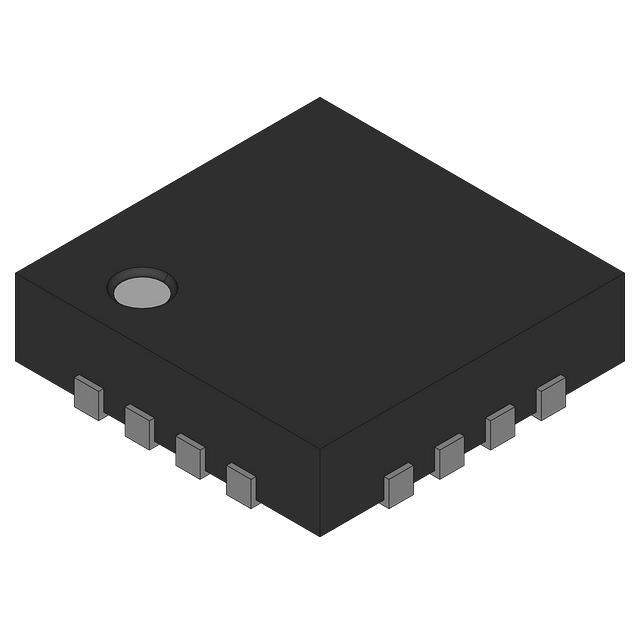

• Surface Mount Package: Packaged in a compact, 16-lead QFN (4mm x 4mm) surface-mount package, the LTC5544IUF#TRPBF is designed for space-constrained applications.

Applications:

With its robust feature set, the LTC5544IUF#TRPBF is ideal for a variety of applications, including:

• Wireless Infrastructure (e.g., cellular base stations, repeaters)
• Satellite Communications Systems
• Test Equipment and Sensors
• Point-to-Point Backhaul Radios
• Broadband Wireless Access

Overall, the LTC5544IUF#TRPBF from Analog Devices Inc. is a highly versatile and reliable component for RF design engineers looking to optimize their frequency conversion stages with a mixer that offers high linearity, low noise, and broad frequency compatibility.
