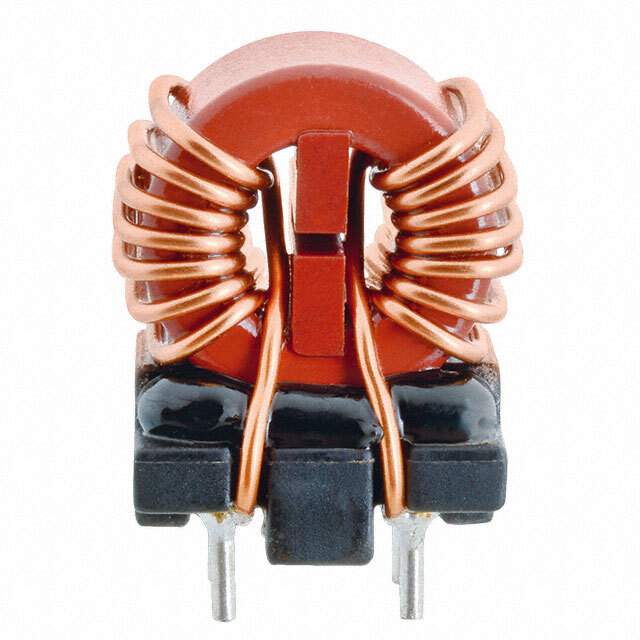

744822301 Real Image
Same model may have multiple batches, images only for reference.

744822301

Part No 744822301
Manufacturer Wurth Electronics Inc
Catalog Common Mode Chokes
Description CMC 1MH 3A 2LN TH
Datasheet
744822301 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Common Mode Chokes
Mfr Wurth Electronics Inc
Series WE-CMB
Package Bulk
Product Status Active
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 1 mH @ 10 kHz
Current Rating (Max) 3A
DC Resistance (DCR) (Max) 35mOhm
Voltage Rating - AC 250V
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Through Hole
Size / Dimension 0.689" L x 0.512" W (17.50mm x 13.00mm)
Height (Max) 0.866" (22.00mm)
Package / Case Vertical, 4 PC Pin
Standard Package 140 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 848552-744822301
Ultra Librarian 3D Model Ultra Librarian 744822301 CAD Model

Description

The WE-CMB is a common mode choke manufactured by Wurth Electronics Inc. It is designed for power line filtering in electronic circuits.

  • Type: Common Mode Choke
  • Application: Power line filtering
  • Voltage Rating: 250V
  • Current Rating: 3A
  • Size: 0.689" L x 0.512" W (17.50mm x 13.00mm)
  • Mounting Type: Through-hole
  • Inductance: 1 mH @ 10 kHz
  • DC Resistance (DCR): 35mOhm
  • Operating Temperature Range: -40°C to 125°C
