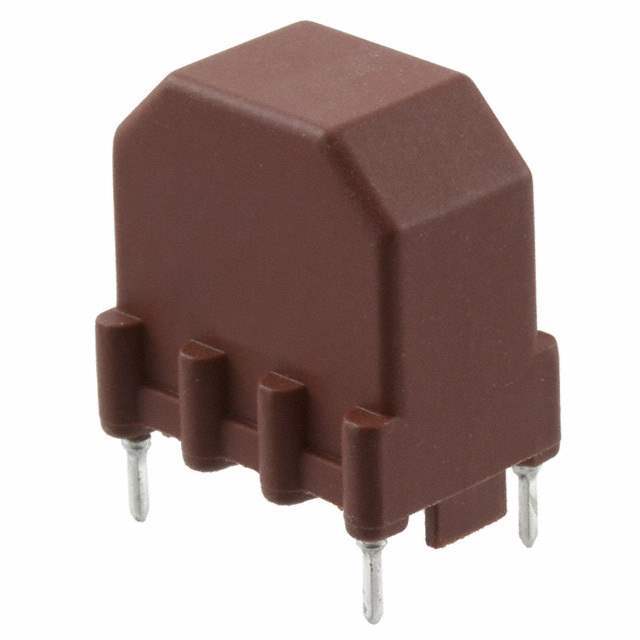

7446122003Würth Elektronik
Same model may have multiple batches, images only for reference.

7446122003

Part No 7446122003
Manufacturer Wurth Electronics Inc
Catalog Common Mode Chokes
Description CMC 3.3MH 1.5A 2LN TH
Datasheet
7446122003 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1207748-7446122003
Manufacturer Würth Elektronik
Category Filters- Common Mode Chokes
Series WE-LF
Package Tray
Product Status Active
Filter Type Power Line
Inductance @ Frequency 3.3 mH @ 10 kHz
DC Resistance (DCR) (Max) 150mOhm
Operating Temperature -40°C ~ 125°C
Size / Dimension 0.728" L x 0.531" W (18.50mm x 13.50mm)
Ultra Librarian 3D Model Ultra Librarian 7446122003 CAD Model

Description

3.3 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 1.5A DCR 150mOhm
